32mm multi-layer interstage system
Nome Serie:
CMT333
Click to enlarge images

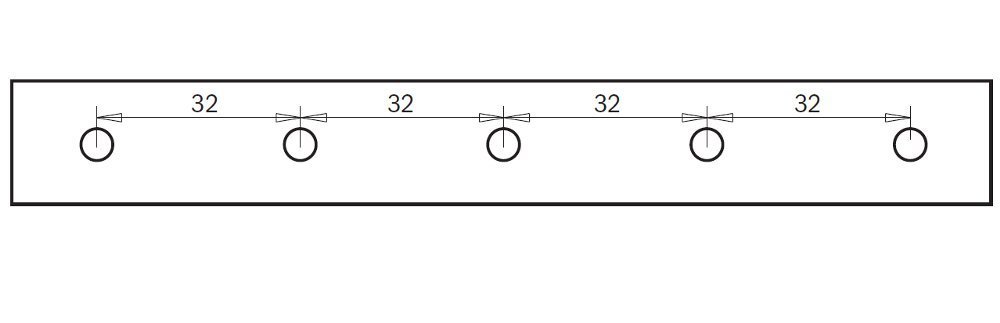

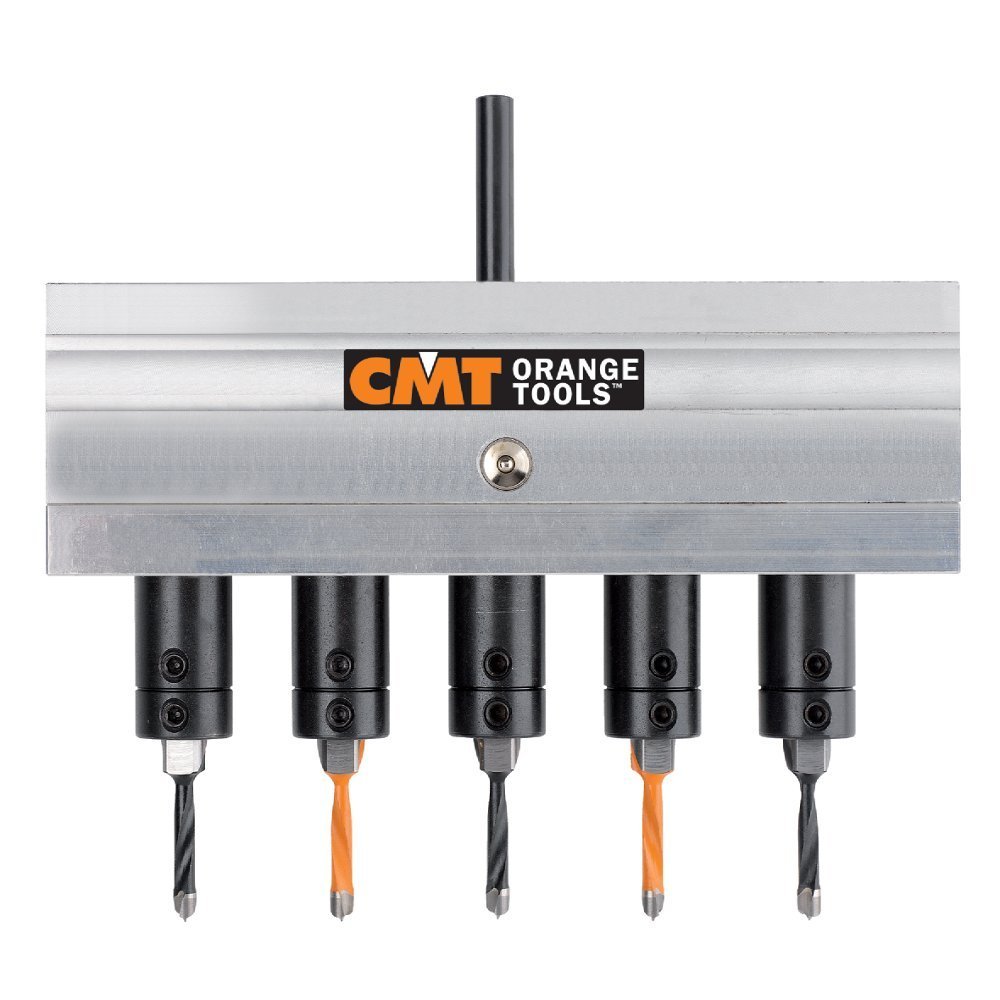

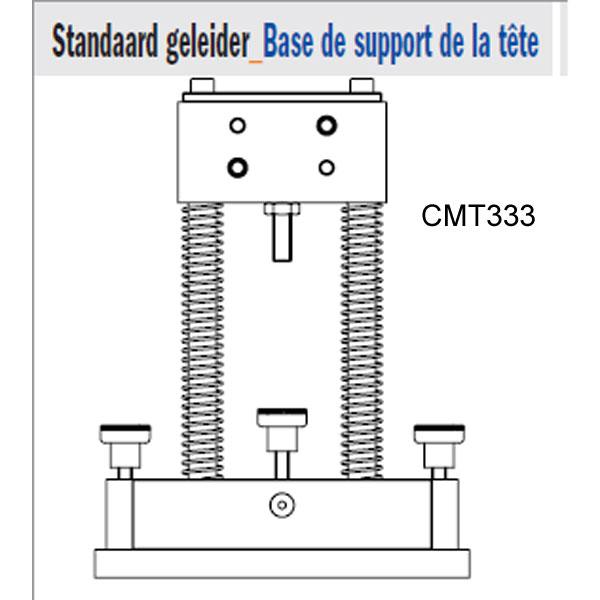

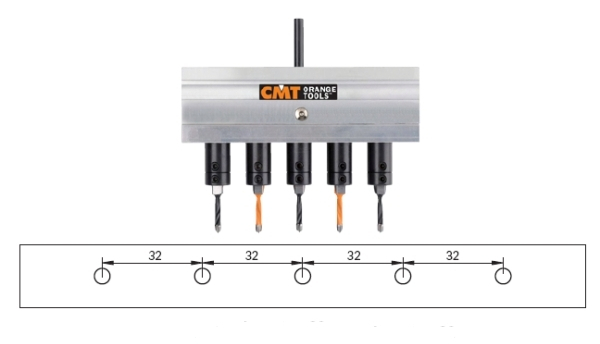

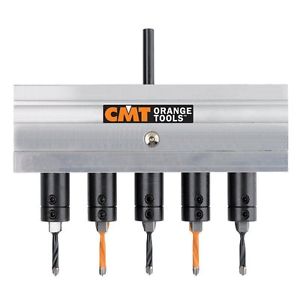

Multiple drilling system interaxis 32mm built entirely with anti-oxidant materials. This innovative and professional system allows the precise and on-axis drilling of 5 holes 32mm interaxis; you can decide to use all five drilling stations or only some according to your needs. It can be mounted on the CMT333 support that can be purchased separately.
Drills are not included in the supply (drill holder from diam.2 to diam.16). The multiple drilling system carries three right rotation drills and two left rotation drills.
CHARACTERISTICS AND TECHNICAL DATA:
-Components completely rustproof.
-Rectified aluminum (Avional).
-Max 5000 RPM.
-6 radial ball bearings.
SAFETY WARNINGS: For lubrication use Mobil SHC100 grease.
| Product | Product | Price | Buy | Description | DIM | D | I | L | S | RH-LH | Favorites |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CMT333-325 | CMT333-325 | 350,63 € | Testina a 5 portapunta interasse 32mm | ||||||||
| CMT333 | CMT333 | 158,16 € | Supporto sistema univesale per foratura | ||||||||
| 310.020.21 | 310.020.21 | 22,23 € | 2 | 12 | 57,5 | 10x27 | RH | ||||
| 310.020.22 | 310.020.22 | 22,23 € | 2 | 12 | 57,5 | 10x27 | LH | ||||
| 310.030.21 | 310.030.21 | 22,23 € | 3 | 18 | 57,5 | 10x25 | RH | ||||
| 310.030.22 | 310.030.22 | 22,23 € | 3 | 18 | 57,5 | 10x25 | LH | ||||
| 310.040.21 | 310.040.21 | 24,02 € | 4 | 20 | 57,5 | 10x25 | RH | ||||
| 310.040.22 | 310.040.22 | 24,02 € | 4 | 20 | 57,5 | 10x25 | LH | ||||
| 310.050.41 | 310.050.41 | 17,23 € | 5 | 27 | 57,5 | 10 | RH | ||||
| 310.050.42 | 310.050.42 | 17,23 € | 5 | 27 | 57,5 | 10 | LH | ||||
| 310.060.41 | 310.060.41 | 17,82 € | 6 | 27 | 57,5 | 10 | RH | ||||
| 310.060.42 | 310.060.42 | 17,82 € | 6 | 27 | 57,5 | 10 | LH | ||||
| 310.080.41 | 310.080.41 | 19,11 € | 8 | 27 | 57,5 | 10 | RH | ||||
| 310.080.42 | 310.080.42 | 19,11 € | 8 | 27 | 57,5 | 10 | LH | ||||
| 310.100.41 | 310.100.41 | 21,30 € | 10 | 27 | 57,5 | 10 | RH | ||||
| 310.100.42 | 310.100.42 | 21,30 € | 10 | 27 | 57,5 | 10 | LH | ||||
| 308.120.11 | 308.120.11 | 20,70 € | 12 | 30 | 57,5 | 10 | RH | ||||
| 308.120.12 | 308.120.12 | 20,70 € | 12 | 30 | 57,5 | 10 | LH | ||||
| 308.160.11 | 308.160.11 | 33,54 € | 16 | 30 | 57,5 | 10 | RH | ||||
| 308.160.12 | 308.160.12 | 33,54 € | 16 | 30 | 57,5 | 10 | LH |
Spare Parts
Punta
Testina per cerniere
Vite STIC
Adattatore opzionale per macchine Weeke*All the prices include 22% Italian VAT
