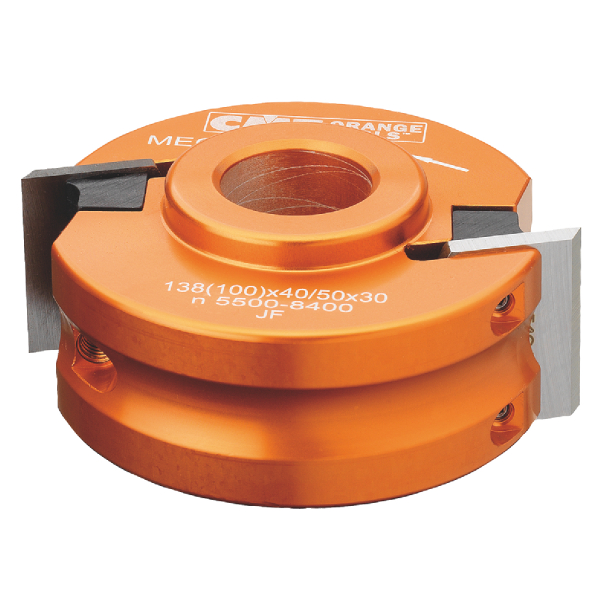

Knife head without limiters
Nome Serie:
692
CMT cutterheads guarantee a perfect execution for all your projects. For use on all types of combination machines and spindle moulders.
TECHNICAL FEATURES:
-knife holder head, without limiters, made of light aluminum alloy or steel;
-couple of straight knives supplied as standard;
-tools for mechanical feed (MEC);
-Pins for automatic positioning of knives;
-Possibility to use knives with height 40mm and 50mm (items 690).
Sold in a practical plastic package to accommodate up to 12 pairs of knives.
For safety reasons, for items 692.078.19 and 692.078.30 we recommend the use of knives with height 40mm.
Application
IMPORTANT RECOMMENDATIONS:

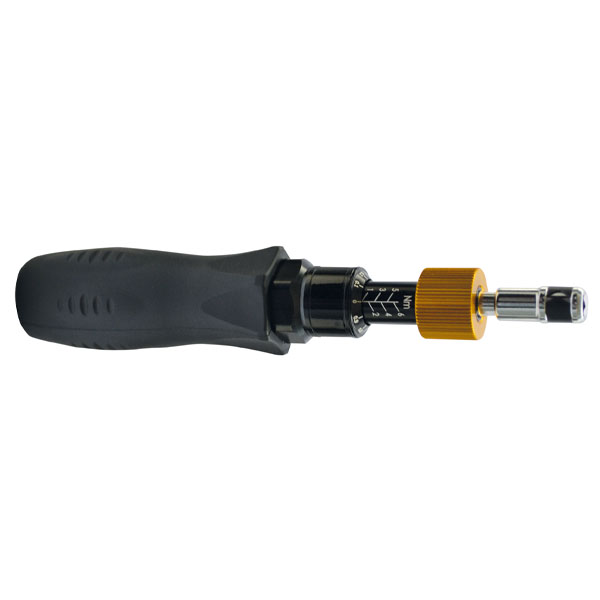

The use of the TW-006 torque screwdriver is recommended for tightening screws.

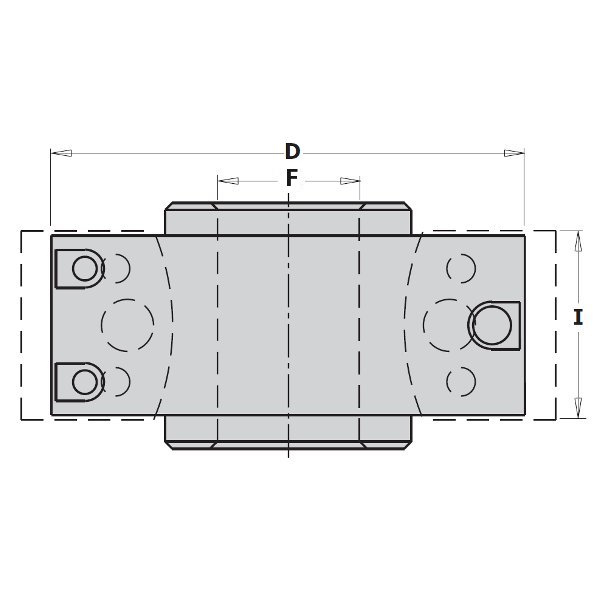

| Product | Product | Price | Buy | D | I | F | RPM | Description | Favorites |
|---|---|---|---|---|---|---|---|---|---|
| 692.078.19 | 692.078.19 | 127,68 € | 78 | 40 | 19,05 | 7000~9000 | Corpo in alluminio | ||
| 692.078.30 | 692.078.30 | 127,68 € | 78 | 40 | 30 | 7000~9000 | Corpo in alluminio | ||
| 692.100.26 | 692.100.26 | 132,22 € | 100 | 40-50 | 25,4 | 7000~9000 | Corpo in alluminio | ||
| 692.101.30 | 692.101.30 | 123,03 € | 100 | 40-50 | 30 | 5500~8400 | Corpo in acciaio | ||
| 692.100.30 | 692.100.30 | 132,22 € | 100 | 40-50 | 30 | 5500~8400 | Corpo in alluminio | ||
| 692.100.31 | 692.100.31 | 132,22 € | 100 | 40-50 | 31,75 | 5500~8400 | Corpo in alluminio | ||
| 692.101.35 | 692.101.35 | 123,03 € | 100 | 40-50 | 35 | 5500~8400 | Corpo in acciaio | ||
| 692.100.35 | 692.100.35 | 132,22 € | 100 | 40-50 | 35 | 5500~8400 | Corpo in alluminio | ||
| 692.121.50 | 692.121.50 | 126,66 € | 120 | 40-50 | 50 | 4800~7400 | Corpo in acciaio | ||
| 692.120.50 | 692.120.50 | 132,22 € | 120 | 40-50 | 50 | 4800~7400 | Corpo in alluminio |
Spare Parts

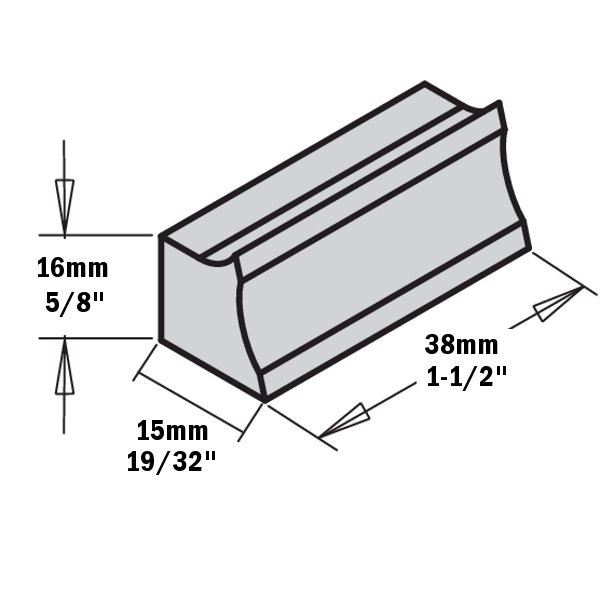

Cuneo
Vite STEI con perno
Chiave esagonale*All the prices include 22% Italian VAT
