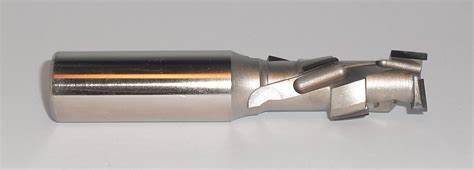

Polycrystalline milling cutters with axial cutting edges Z1+1
Nome Serie:
DIA
TECHNICAL FEATURES:
Z1+1 diamond cutter, H2.5 mm economic diamond plate (resharpenable maximum 3 times), 3 helix divisions +- first positive plate, the rest of the negative plates, widia drill and steel body.
Application
Excellent for machining coated particleboard, laminated panels, coated MDF and knotless hardwoods.

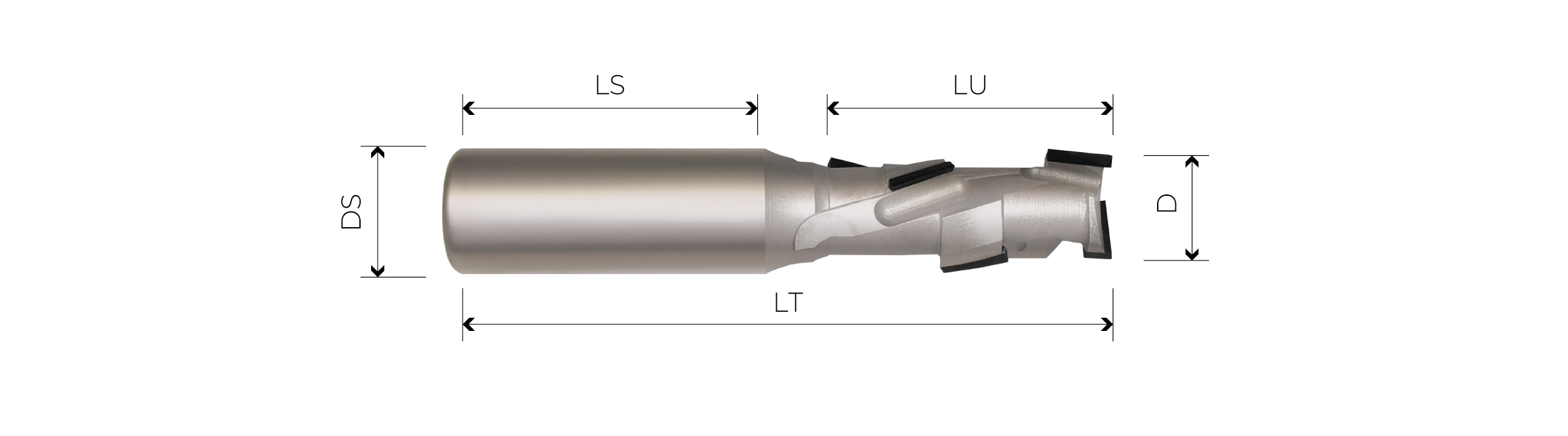

| Product | Product | Price | Buy | D | I | L | S | Z | RH-LH | Favorites |
|---|---|---|---|---|---|---|---|---|---|---|
| FPD2011126R | FPD2011126R | 92,35 € | 8 | 25 | 75 | 12 | (1+1)(3DP+1HW) | RH | ||
| FPD2012002R | FPD2012002R | 56,99 € | 10 | 27 | 75 | 12 | (1+1)(3DP+1HW) | RH | ||
| FPD2012010R | FPD2012010R | 56,99 € | 12 | 27 | 75 | 12 | (1+1)(3DP+1HW) | RH | ||
| FPD2012018R | FPD2012018R | 76,02 € | 12 | 34 | 84 | 12 | (1+1)(4DP+1HW) | RH | ||
| FPD2012026R | FPD2012026R | 95,00 € | 12 | 43 | 93 | 12 | (1+1)(5DP+1HW) | RH | ||
| FPD2012058R | FPD2012058R | 56,99 € | 16 | 27 | 85 | 16 | (1+1)(3DP+1HW) | RH | ||
| FPD2012064R | FPD2012064R | 76,02 € | 16 | 34 | 94 | 16 | (1+1)(4DP+1HW) | RH | ||
| FPD2012070R | FPD2012070R | 95,00 € | 16 | 43 | 103 | 16 | (1+1)(5DP+1HW) | RH | ||
| FPD2012082R | FPD2012082R | 56,99 € | 18 | 27 | 85 | 20 | (1+1)(3DP+1HW) | RH | ||
| FPD2012086R | FPD2012086R | 76,02 € | 18 | 34 | 94 | 20 | (1+1)(4DP+1HW) | RH | ||
| FPD2012090R | FPD2012090R | 95,00 € | 18 | 43 | 103 | 20 | (1+1)(5DP+1HW) | RH | ||
| FPD2012102R | FPD2012102R | 56,99 € | 20 | 27 | 85 | 20 | (1+1)(3DP+1HW) | RH | ||
| FPD2012106R | FPD2012106R | 76,02 € | 20 | 35 | 95 | 20 | (1+1)(4DP+1HW) | RH | ||
| FPD2012110R | FPD2012110R | 95,00 € | 20 | 43 | 103 | 20 | (1+1)(5DP+1HW) | RH | ||
| FPD2012114R | FPD2012114R | 113,97 € | 20 | 52 | 112 | 20 | (1+1)(6DP+1HW) | RH | ||
| FPD2012118R | FPD2012118R | 132,99 € | 20 | 61 | 121 | 20 | (1+1)(7DP+1HW) | RH | ||
| FPD2012122R | FPD2012122R | 151,97 € | 20 | 70 | 130 | 20 | (1+1)(8DP+1HW) | RH | ||
| FPD2012134R | FPD2012134R | 76,02 € | 25 | 34 | 99 | 25 | (1+1)(4DP+1HW) | RH | ||
| FPD2012136R | FPD2012136R | 95,00 € | 25 | 43 | 108 | 25 | (1+1)(5DP+1HW) | RH | ||
| FPD2012140R | FPD2012140R | 132,99 € | 25 | 61 | 126 | 25 | (1+1)(7DP+1HW) | RH | ||
| FPD2012152R | FPD2012152R | 170,95 € | 25 | 76 | 126 | 25 | (1+1)(9DP+1HW) | RH | ||
| FPD2012162R | FPD2012162R | 189,98 € | 25 | 87 | 126 | 25 | (1+1)(10DP+1HW) | RH | ||
| FPD2012156R | FPD2012156R | 208,95 € | 25 | 95 | 126 | 25 | (1+1)(11DP+1HW) | RH | ||
| FPD2012158R | FPD2012158R | 227,94 € | 25 | 105 | 126 | 25 | (1+1)(12DP+1HW) | RH | ||
| FPD2012160R | FPD2012160R | 246,96 € | 25 | 113 | 126 | 25 | (1+1)(13DP+1HW) | RH | ||
| FPD2012001L | FPD2012001L | 56,99 € | 10 | 27 | 75 | 12 | (1+1)(3DP+1HW) | LH | ||
| FPD2012009L | FPD2012009L | 56,99 € | 12 | 27 | 75 | 12 | (1+1)(3DP+1HW) | LH | ||
| FPD2012017L | FPD2012017L | 76,02 € | 12 | 34 | 84 | 12 | (1+1)(4DP+1HW) | LH | ||
| FPD2012025L | FPD2012025L | 95,00 € | 12 | 43 | 93 | 12 | (1+1)(5DP+1HW) | LH | ||
| FPD2012057L | FPD2012057L | 56,99 € | 16 | 27 | 85 | 16 | (1+1)(3DP+1HW) | LH | ||
| FPD2012063L | FPD2012063L | 76,02 € | 16 | 34 | 94 | 16 | (1+1)(4DP+1HW) | LH | ||
| FPD2012069L | FPD2012069L | 95,00 € | 16 | 43 | 103 | 16 | (1+1)(5DP+1HW) | LH | ||
| FPD2012081L | FPD2012081L | 56,99 € | 18 | 27 | 85 | 20 | (1+1)(3DP+1HW) | LH | ||
| FPD2012085L | FPD2012085L | 76,02 € | 18 | 34 | 94 | 20 | (1+1)(4DP+1HW) | LH | ||
| FPD2012089L | FPD2012089L | 95,00 € | 18 | 43 | 103 | 20 | (1+1)(5DP+1HW) | LH | ||
| FPD2012101L | FPD2012101L | 56,99 € | 20 | 27 | 85 | 20 | (1+1)(3DP+1HW) | LH | ||
| FPD2012105L | FPD2012105L | 76,02 € | 20 | 35 | 95 | 20 | (1+1)(4DP+1HW) | LH | ||
| FPD2012109L | FPD2012109L | 95,00 € | 20 | 43 | 103 | 20 | (1+1)(5DP+1HW) | LH | ||
| FPD2012113L | FPD2012113L | 113,97 € | 20 | 52 | 112 | 20 | (1+1)(6DP+1HW) | LH | ||
| FPD2012117L | FPD2012117L | 132,99 € | 20 | 61 | 121 | 20 | (1+1)(7DP+1HW) | LH | ||
| FPD2012121L | FPD2012121L | 151,97 € | 20 | 70 | 130 | 20 | (1+1)(8DP+1HW) | LH | ||
| FPD2012133L | FPD2012133L | 76,02 € | 25 | 34 | 99 | 25 | (1+1)(4DP+1HW) | LH | ||
| FPD2012137L | FPD2012137L | 113,97 € | 25 | 52 | 117 | 25 | (1+1)(6DP+1HW) | LH | ||
| FPD2012139L | FPD2012139L | 132,99 € | 25 | 61 | 126 | 25 | (1+1)(7DP+1HW) | LH | ||
| FPD2012151L | FPD2012151L | 170,95 € | 25 | 76 | 126 | 25 | (1+1)(9DP+1HW) | LH | ||
| FPD2012159L | FPD2012159L | 246,96 € | 25 | 113 | 126 | 25 | (1+1)(13DP+1HW) | LH |
*All the prices include 22% Italian VAT
