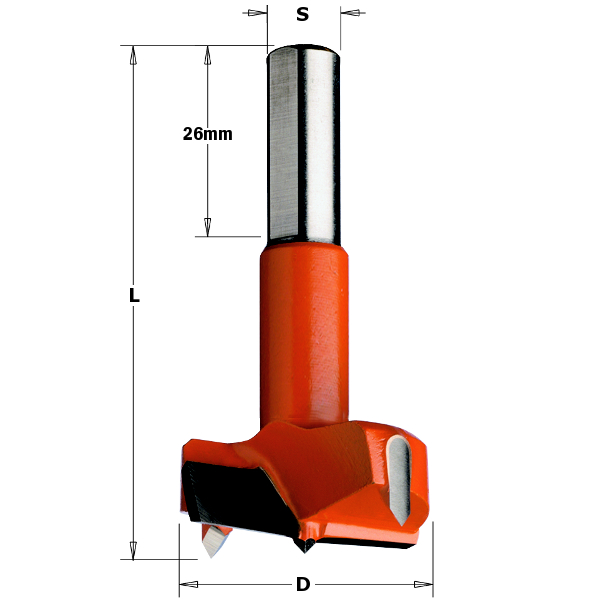

Quick connect drill bits for hinges
Nome Serie:
369 HW
TECHNICAL FEATURES:
-manufactured with high strength special steel;
-black and orange fluorocarbon resin coating;
-centering tip HW;
-2 cutting edges (Z2);
-2 negative sharpening engravers (V2);
-attachment with fixing plate and screw for axial adjustment.
Application

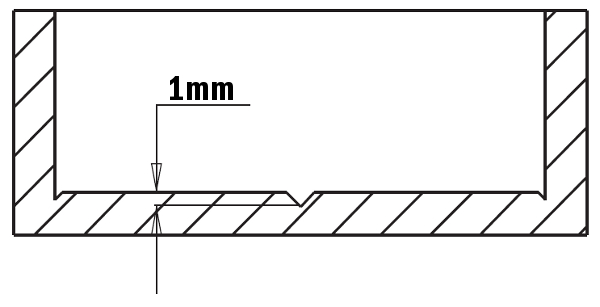

For blind holes in solid wood and its derivatives, including laminates. Ideal for creating hinge seats.. To be inserted on spindles or adapters in drilling machines.
| Product | Product | Price | Buy | D | L | S | RH-LH | Favorites |
|---|---|---|---|---|---|---|---|---|
| 369.140.12 | 369.140.12 | 34,04 € | 14 | 70 | 10 | LH | ||
| 369.140.11 | 369.140.11 | 34,04 € | 14 | 70 | 10 | RH | ||
| 369.150.12 | 369.150.12 | 34,04 € | 15 | 70 | 10 | LH | ||
| 369.150.11 | 369.150.11 | 34,04 € | 15 | 70 | 10 | RH | ||
| 369.160.12 | 369.160.12 | 34,90 € | 16 | 70 | 10 | LH | ||
| 369.160.11 | 369.160.11 | 34,90 € | 16 | 70 | 10 | RH | ||
| 369.180.12 | 369.180.12 | 36,17 € | 18 | 70 | 10 | LH | ||
| 369.180.11 | 369.180.11 | 36,17 € | 18 | 70 | 10 | RH | ||
| 369.200.12 | 369.200.12 | 36,17 € | 20 | 70 | 10 | LH | ||
| 369.200.11 | 369.200.11 | 36,17 € | 20 | 70 | 10 | RH | ||
| 369.220.12 | 369.220.12 | 38,54 € | 22 | 70 | 10 | LH | ||
| 369.220.11 | 369.220.11 | 38,54 € | 22 | 70 | 10 | RH | ||
| 369.250.12 | 369.250.12 | 38,54 € | 25 | 70 | 10 | LH | ||
| 369.250.11 | 369.250.11 | 38,54 € | 25 | 70 | 10 | RH | ||
| 369.260.12 | 369.260.12 | 39,46 € | 26 | 70 | 10 | LH | ||
| 369.260.11 | 369.260.11 | 39,46 € | 26 | 70 | 10 | RH | ||
| 369.300.12 | 369.300.12 | 42,17 € | 30 | 70 | 10 | LH | ||
| 369.300.11 | 369.300.11 | 42,17 € | 30 | 70 | 10 | RH | ||
| 369.350.12 | 369.350.12 | 43,45 € | 35 | 70 | 10 | LH | ||
| 369.350.11 | 369.350.11 | 43,45 € | 35 | 70 | 10 | RH | ||
| 369.400.12 | 369.400.12 | 50,28 € | 40 | 70 | 10 | LH | ||
| 369.400.11 | 369.400.11 | 50,28 € | 40 | 70 | 10 | RH | ||
| 369.450.12 | 369.450.12 | 60,77 € | 45 | 70 | 10 | LH | ||
| 369.450.11 | 369.450.11 | 60,77 € | 45 | 70 | 10 | RH | ||
| 369.500.12 | 369.500.12 | 63,30 € | 50 | 70 | 10 | LH | ||
| 369.500.11 | 369.500.11 | 63,30 € | 50 | 70 | 10 | RH | ||
| 369.550.12 | 369.550.12 | 69,29 € | 55 | 70 | 10 | LH | ||
| 369.550.11 | 369.550.11 | 69,29 € | 55 | 70 | 10 | RH | ||
| 369.600.12 | 369.600.12 | 70,22 € | 60 | 70 | 10 | LH | ||
| 369.600.11 | 369.600.11 | 70,22 € | 60 | 70 | 10 | RH |
Spare Parts
Vite STIC
Adattatore opzionale per macchine Weeke*All the prices include 22% Italian VAT
