Quick connect drill bits for through holes
Nome Serie:
375 HW
TECHNICAL FEATURES:
-manufactured with high strength special steel;
-black and orange fluorocarbon resin coating;
-HWM drill bit;
-4 cutting edges (Z2);
-2 helical grooves;
-attachment with fixing plate and screw for axial adjustment.
Application
For through holes in solid wood and wood derivatives, including laminates. To be inserted on spindles or adapters in drilling machines.
For panels of maximum thickness 30-35mm.

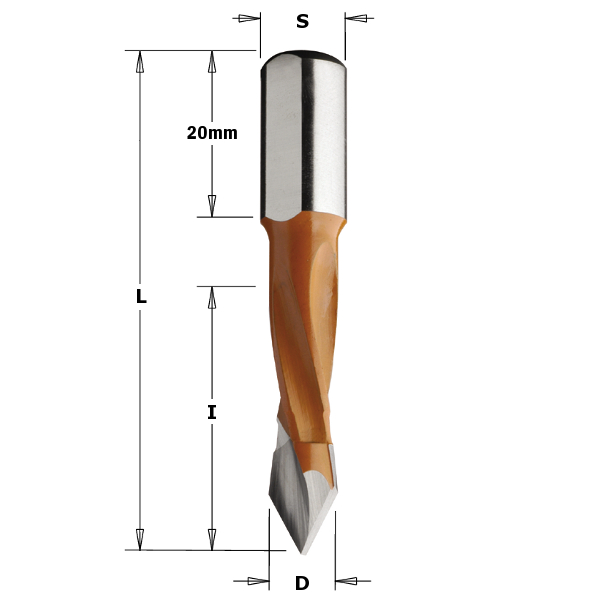

| Product | Product | Price | Buy | D | I | L | S | RH-LH | Favorites |
|---|---|---|---|---|---|---|---|---|---|
| 375.050.12 | 375.050.12 | 21,05 € | 5 | 40 | 70 | 10 | LH | ||
| 375.050.11 | 375.050.11 | 21,05 € | 5 | 40 | 70 | 10 | RH | ||
| 375.060.12 | 375.060.12 | 22,40 € | 6 | 40 | 70 | 10 | LH | ||
| 375.060.11 | 375.060.11 | 22,40 € | 6 | 40 | 70 | 10 | RH | ||
| 375.070.12 | 375.070.12 | 24,18 € | 7 | 40 | 70 | 10 | LH | ||
| 375.070.11 | 375.070.11 | 24,18 € | 7 | 40 | 70 | 10 | RH | ||
| 375.080.12 | 375.080.12 | 23,00 € | 8 | 40 | 70 | 10 | LH | ||
| 375.080.11 | 375.080.11 | 23,00 € | 8 | 40 | 70 | 10 | RH | ||
| 375.100.12 | 375.100.12 | 24,78 € | 10 | 40 | 70 | 10 | LH | ||
| 375.100.11 | 375.100.11 | 24,78 € | 10 | 40 | 70 | 10 | RH |
Spare Parts
Vite STIC
Adattatore opzionale per macchine Weeke*All the prices include 22% Italian VAT
