T-SLOT slotting cutters for aluminum profiles Z2+2

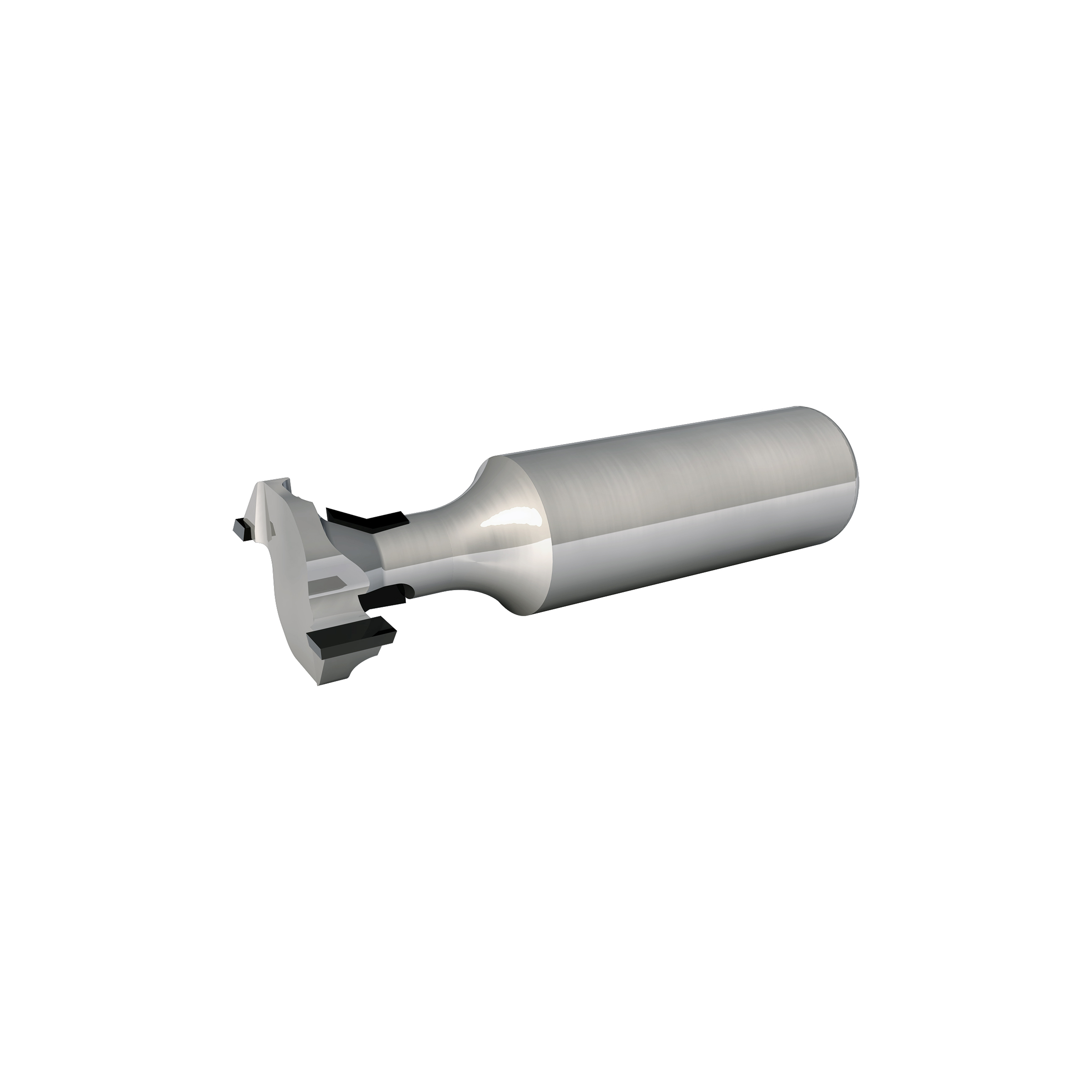

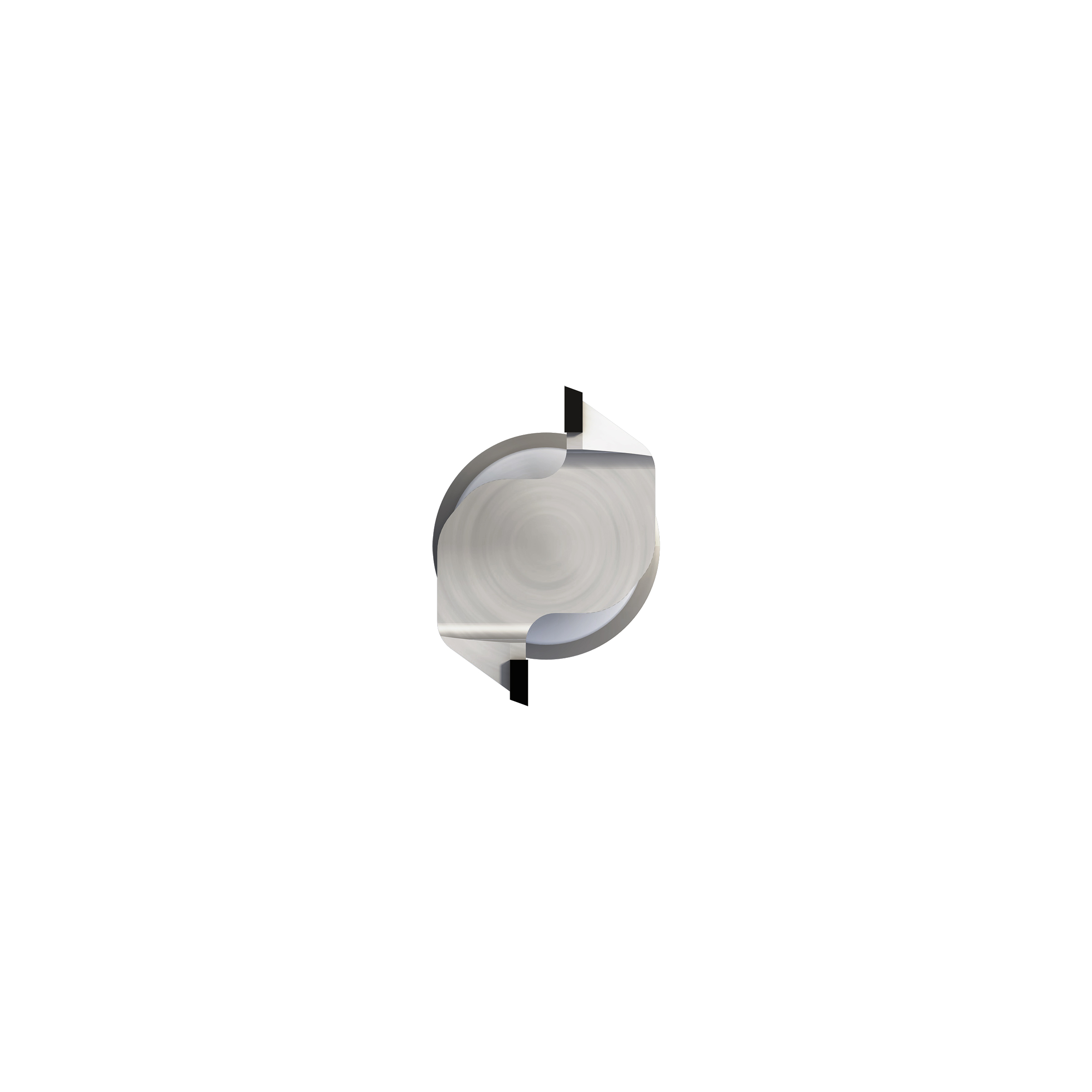

Diamond shaped cutter Z2 for slot machining of aluminum profiles. Ang. Ass. 0°/5°-. Steel body, PCD H4,5 mm. R.P.M. MAX 24000.

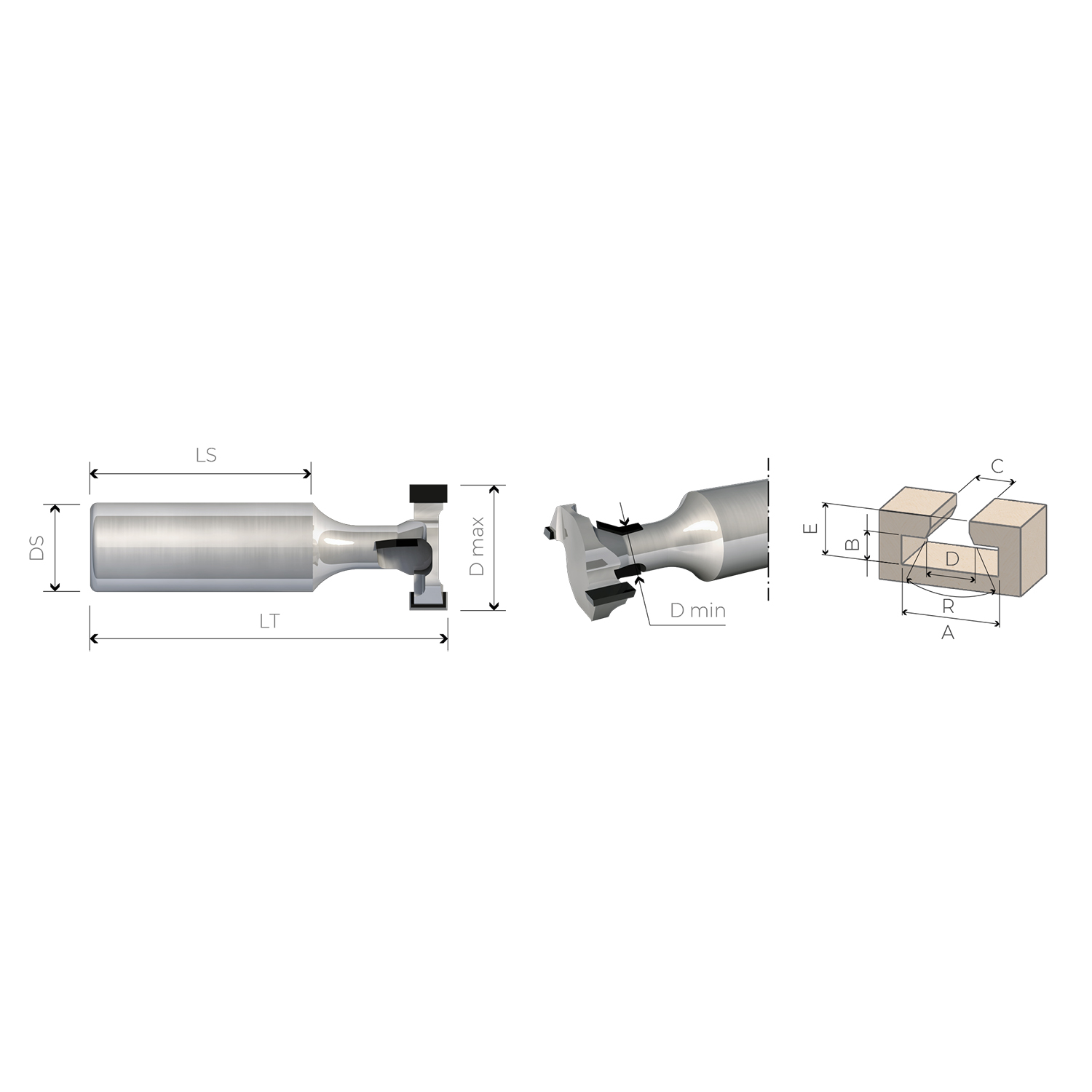

FPS3008001: A 28,4 - B 8,5 - C 11,4 - D 14,2 - E 16 - R 50°
FPS3008002: A 30,5 - B 8,3 - C 11,4 - D 14,1 - E 16 - R 60°

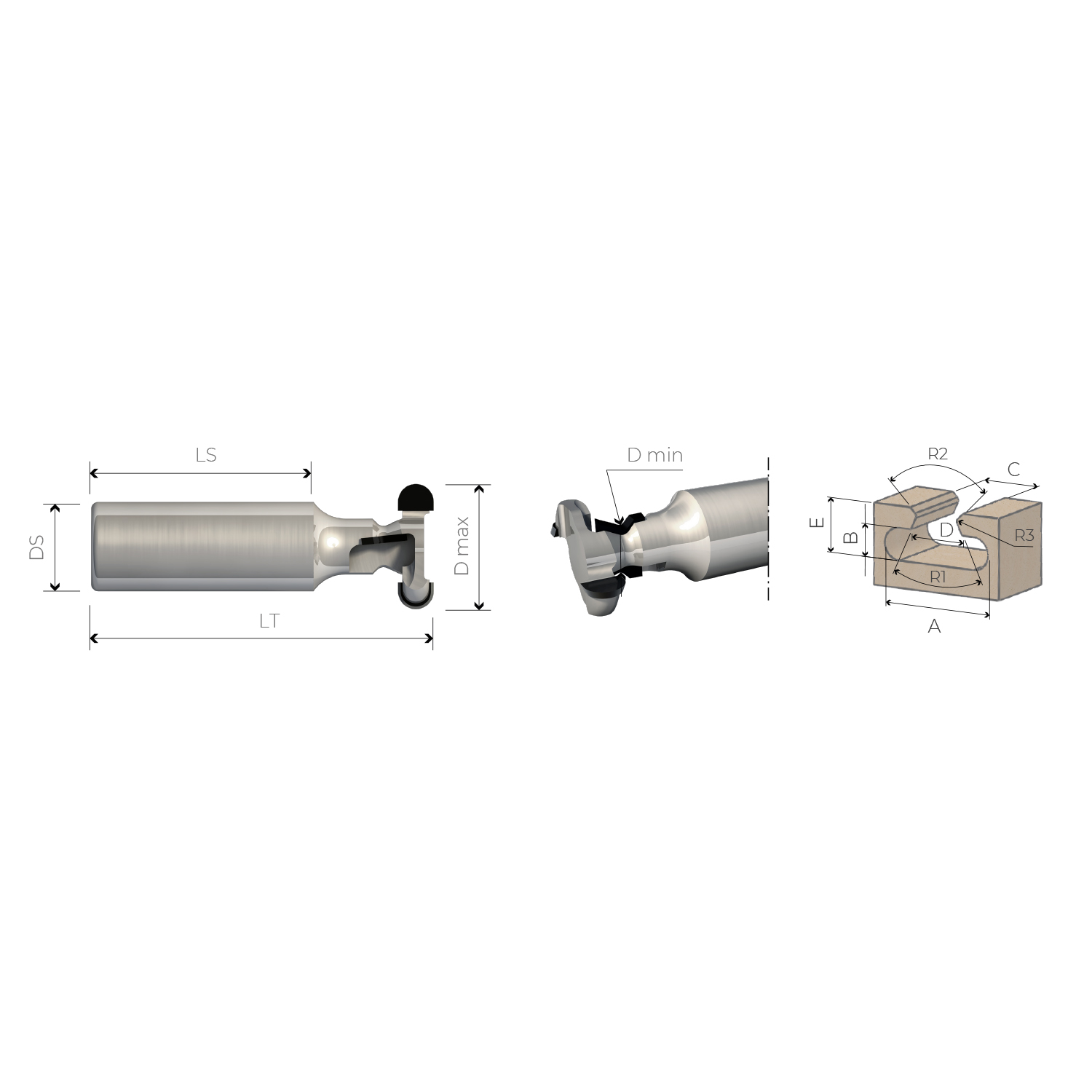

FPS3008003: A 28,5 - B 8 - C 14,5 - D 14,1 - E 13,33 - R1 49,94° - R2 90° - R3 1°
FPS3008004: A 31,56 - B 9,5 - C 11,8 - D 12,84 - E 19 - F 29,59 - R1 0,5 - R 15,66°
Application
MDF, HDF, chipboard, plywood, light and hard wood.
| Product | Product | Price | Buy | D | d | L | S | Z | RH-LH | Favorites |
|---|---|---|---|---|---|---|---|---|---|---|
| FPS3008001 | FPS3008001 | 237,44 € | 28,4 | 11,4 | 80 | 20 | 4 | RH | ||
| FPS3008002 | FPS3008002 | 237,44 € | 30,5 | 11,7 | 80 | 20 | 4 | RH | ||
| FPS3008003 | FPS3008003 | 237,44 € | 28,5 | 12,4 | 80 | 20 | 4 | RH | ||
| FPS3008004 | FPS3008004 | 237,44 € | 31,56 | 11,8 | 80 | 20 | 4 | RH |
*All the prices include 22% Italian VAT
