twist drills HSS

Nome Serie:

517 HS

Click to enlarge images

TECHNICAL FEATURES:

-high strength special steel HS;

-high resistance of cutting edges to wear;

-centering tip

-2 HS cutting edges (Z2);

-4 helical grooves.

Application

For drilling holes in natural wood, solid wood and wood derivatives.

High cutting life!

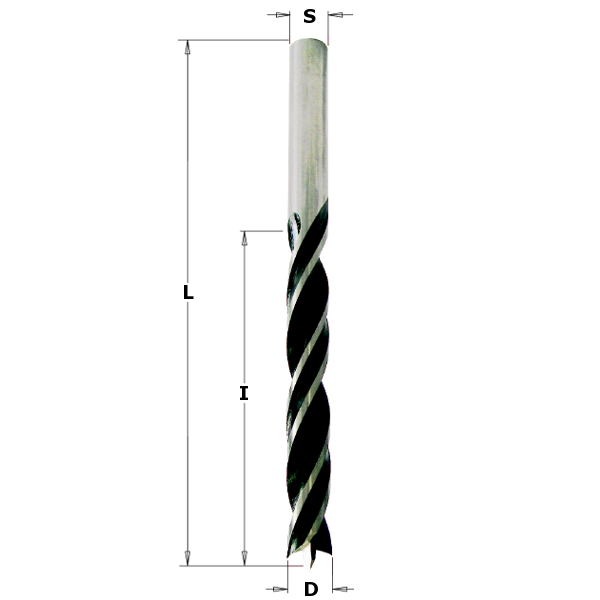

Product	Product	Price	D	I	L	S
517.030.51	517.030.51	2,71 €	Ø 3mm	33mm	61mm	Ø 3mm
517.040.51	517.040.51	2,71 €	Ø 4mm	43mm	75mm	Ø 4mm
517.050.51	517.050.51	2,71 €	Ø 5mm	52mm	86mm	Ø 5mm
517.060.51	517.060.51	2,88 €	Ø 6mm	57mm	93mm	Ø 6mm
FG-1594.065	FG-1594.065	8,01 €	Ø 6,5	63mm	100mm	Ø 6.5mm
517.070.51	517.070.51	3,14 €	Ø 7mm	69mm	109mm	Ø 7mm
FG-1594.075	FG-1594.075	10,17 €	Ø 7,5mm	69mm	108mm	Ø 7,5mm
517.080.51	517.080.51	3,39 €	Ø 8mm	75mm	117mm	Ø 8mm
FG1594.085	FG1594.085	11,04 €	Ø 8,5mm	75mm	115mm	Ø 8,5mm
517.090.51	517.090.51	3,73 €	Ø 9mm	80mm	120mm	Ø 9mm
FG-1594.095	FG-1594.095	13,52 €	Ø 9,5mm	81mm	125mm	Ø 9,5mm
517.100.51	517.100.51	4,58 €	Ø 10mm	80mm	120mm	Ø 10mm
FG-1594.105	FG-1594.105	19,14 €	Ø 10,5mm	87mm	130mm	Ø 10,5mm
517.110.51	517.110.51	5,76 €	Ø 11mm	89mm	142mm	Ø 8mm
FG-1594.115	FG-1594.115	21,61 €	Ø 11,5mm	94mm	140mm	Ø 11,5mm
517.120.51	517.120.51	6,59 €	Ø 12mm	96mm	151mm	Ø 8mm
FG-1594.125	FG-1594.125	25,41 €	Ø 12,5mm	101mm	150	Ø 12,5mm
517.130.51	517.130.51	8,55 €	Ø 13mm	96mm	151mm	Ø 8mm
517.140.51	517.140.51	10,49 €	Ø 14mm	96mm	151mm	Ø 10mm
517.150.51	517.150.51	13,54 €	Ø 15mm	100mm	160mm	Ø 10mm
517.160.51	517.160.51	14,63 €	Ø 16mm	100mm	160mm	Ø 10mm

*All the prices include 22% Italian VAT
