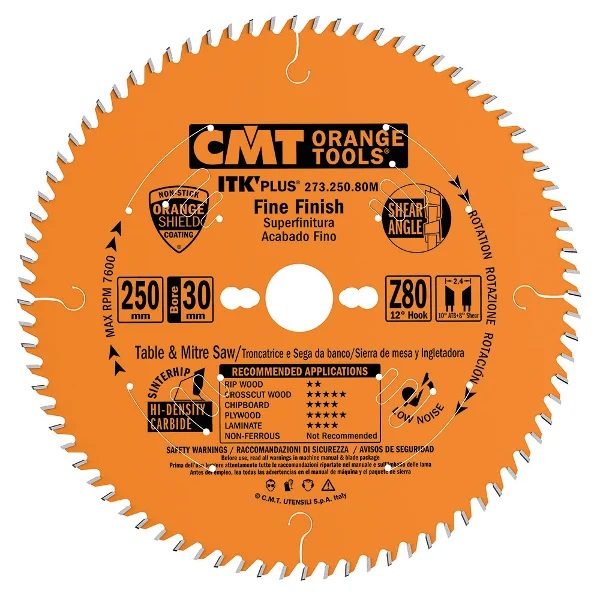

Ultra ITK for precision cutting
Nome Serie:
273
TECHNICAL CHARACTERISTICS OF HW TEETH:
| -tooth height in mm: | 7~8 |
| -quality CHROME, ISO code: | KCR06 |
| -hardness (HV10): | 1.950 |
| -flexural strength (N/mm2): | 2.300 |
COMBI3 driving holes: 2/7/42 + 2/9,5/46,5 + 2/10/60.
Application
Use: for cross-cutting and perfect finishing. Thanks to its thin thickness, the blade reduces material waste to a minimum. Particularly suitable for fine woods.
Machines: Table saws, mitre saws, portable and cordless machines.
Material: softwood, hardwood, exotic wood, plywood and laminated wood.
| Product | Product | Price | Buy | D | F | FT | Z | K | P | a | b | Favorites |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 273.160.56H | 273.160.56H | 26,79 € | 160 | 20 (+16) | 2/6/32 | 56 | 1,7 | 1,1 | 12° | 10° ATB + 8° Shear | ||
| 273.190.64M | 273.190.64M | 32,29 € | 190 | 30 (+20+16) | 2/7/42 | 64 | 1,7 | 1,1 | 15° | 10° ATB + 8° Shear | ||
| 273.216.64M | 273.216.64M | 39,04 € | 216 | 30 | 64 | 1,8 | 1,2 | -5° Neg. | 10° ATB + 8° Shear | |||
| 273.250.80M | 273.250.80M | 45,21 € | 250 | 30 | COMBI3 | 80 | 2,4 | 1,6 | 12° | 10° ATB + 8° Shear | ||
| 273.300.96M | 273.300.96M | 65,92 € | 300 | 30 | COMBI3 | 96 | 2,6 | 1,8 | 12° | 10° ATB + 8° Shear |
*All the prices include 22% Italian VAT
