Universal chuck removers
Nome Serie:
183-HSK/ISO
The ideal partners for machining centers, point-to-point machines, CNC pantographs.
-high precision and extreme reliability;
-perfect tool centring;
-elimination of any rotation defect;
-Made with special high resistance steel;
-Precision rectification on all coupled surfaces;
-high transmissible power ≥ 11 KW (15 HP) - 20.000 rpm;
-to contour with surprising efficiency at feed rates previously unattainable;
-excellent workpiece finishing quality with longer tool life;
-Compact structure to reduce the vertical encumbrance with a favorable increase of the distance between the operating head and the worktable;
-rapidity and safety in the installation of the tool;
-interchangeable biconical collets with axial notches interspersed and opposed, for the complete cylindrical clamping of the tool;
-extensive clamping range below the nominal collet diameter -0.7mm;
-spindles specifically designed for right or left-hand rotation with self-locking antagonist threads;
-Tool clamping ring with semi-pitorical radial grooves (Woodruff) for sector wrench;
-practical and ergonomic clamping sleeve to the spindle motor equipped with double differential threads;
-Lowered central hexagonal profile for wrench retention;
-developed and tested in collaboration with the design studios of the most prestigious manufacturers of CNC machining centers and pantographs;
-enclosed in an elegant professional plastic container.
Application

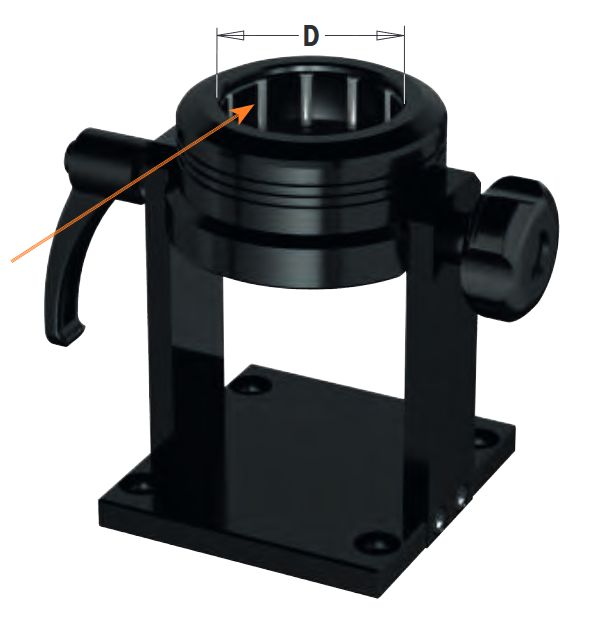

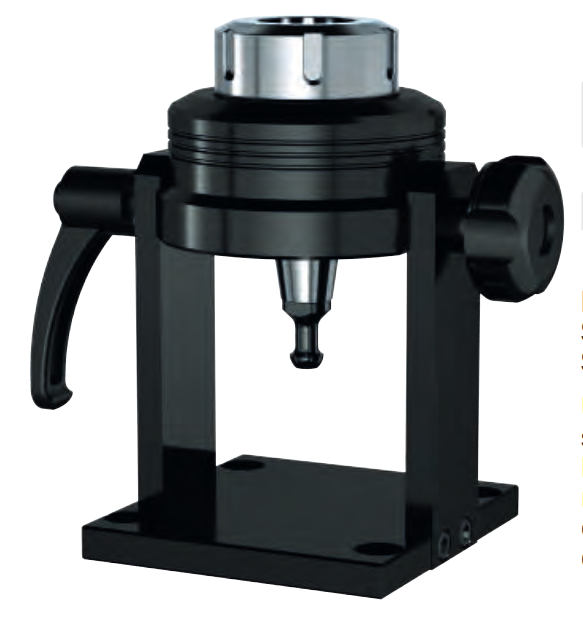

Practical and indispensable tools in your workshop for disassembling your HSK-F63 and ISO30 spindles without damaging the spindle surface. In fact, a special bidirectional needle cage locks the tool holder on the flange to allow the tools to be mounted and removed on the spindle body.
| Product | Product | Price | Buy | Description | D | Favorites |
|---|---|---|---|---|---|---|
| 183-HSK | 183-HSK | 185,00 € | Smontaconi universale per mandrini HSK-F63 | 63 | ||
| 183-ISO | 183-ISO | 185,00 € | Smontaconi universale per mandrini ISO30 | 50 |
*All the prices include 22% Italian VAT
