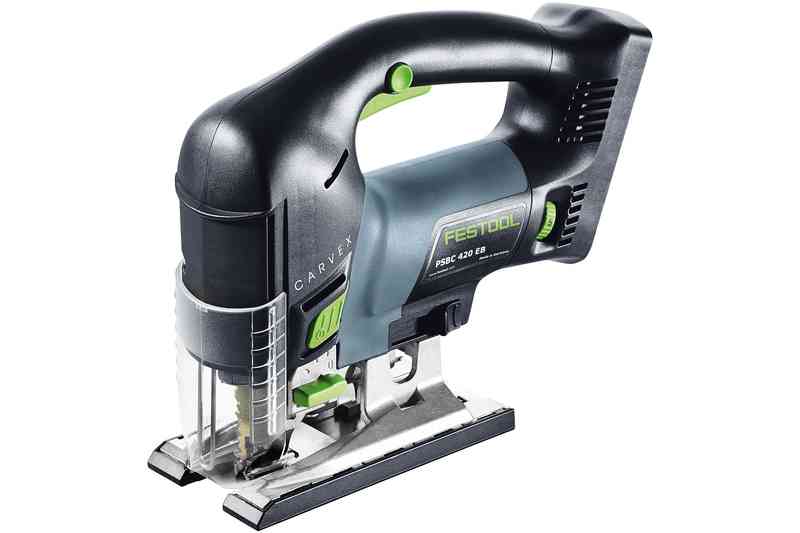

Cordless jigsaw CARVEX PSBC 420 Li 18

Click to enlarge images

Product	Name	Product	Price

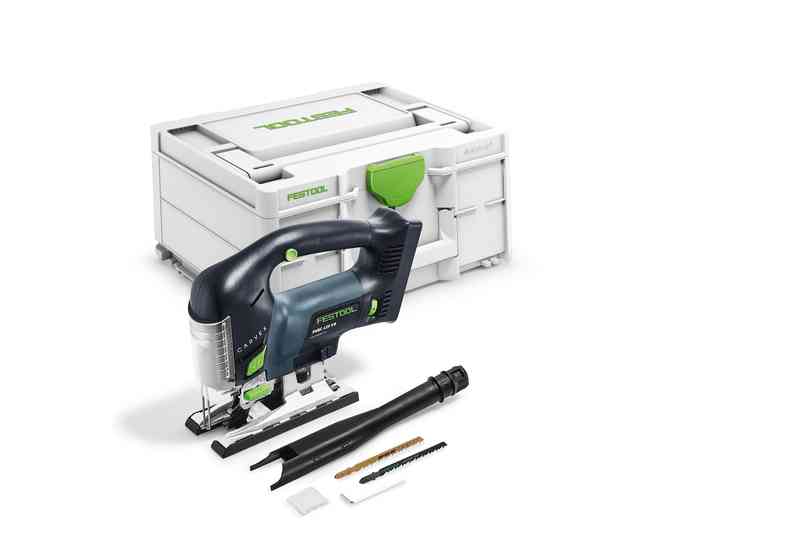

FT-576530	PSBC 420 EB-Basic	FT-576530 PSBC 420 EB-Basic	441,38 €

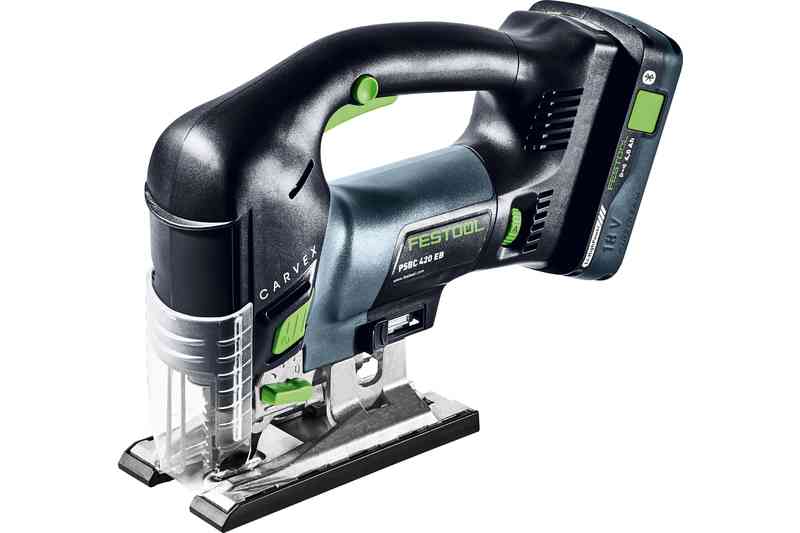

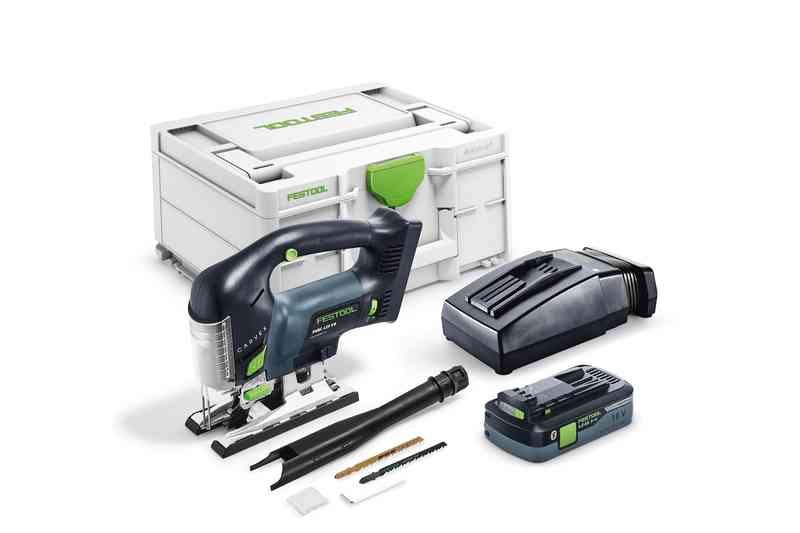

FT-576532	PSBC 420 HPC 4,0 EBI-Plus	FT-576532 PSBC 420 HPC 4,0 EBI-Plus	643,51 €

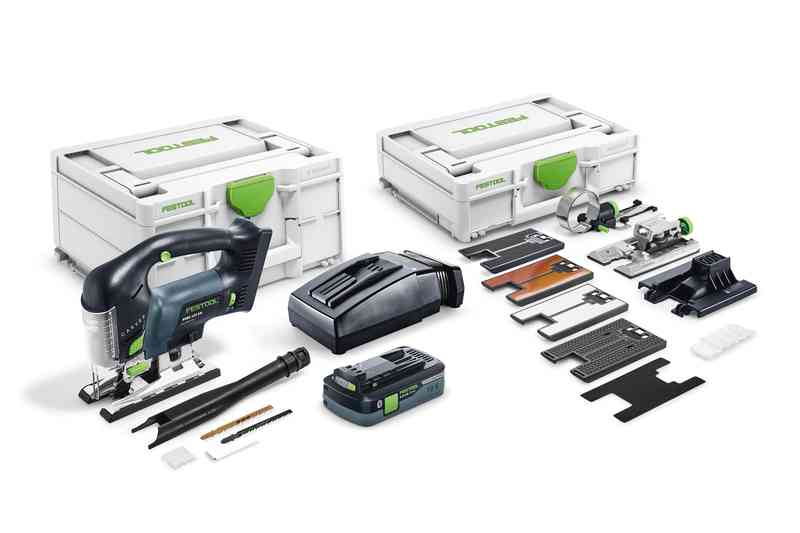

FT-576536	PSBC 420 HPC 4,0 EBI-Set	FT-576536 PSBC 420 HPC 4,0 EBI-Set	898,07 €

Descrizione:

Usage

Technical data

Battery voltage

18 V

Stroke rate

1 000 - 3 800 min⁻¹

Pendulum cover adjustment in stages

4.00

Cutting depth in wood

120.00 mm

Cutting depth in NF metals

20.00 mm

Cutting depth in steel (soft)

10.00 mm

Li-ion battery capacity

4.00 Ah

Weight with Li-ion

2.30 kg

Drive type

Battery

Performance features

Antistatic function

Mobile dust extractors and tools with the antistatic function to prevent static charge from accumulating when working.
MMC digital electronics

Processor controlled “Multi Material Control” power electronics provide adjustable and constant speeds as well as temperature monitoring for work on all types of material.
Jigsaw with precision guidance

Long-wearing carbide jaws guide the saw blade directly over the cutting location. For precise work results.
Splinter guard

Patented splinterguard for splinter-free cuts on both sides when sawing.
FastFix

Makes changing routing, sawing, planing, sanding, drilling and screwdriving tools easier.
Guide system

Patented guide system for safe guidance of saws and router bits.
CLEANTEC

Integrated bayonet fitting as the connecting element between the extractor and the tool.
EC-TEC motor

The EC-TEC drive concept generates an extraordinary amount of power while consuming extremely low amounts of energy.

Noise and vibration values

Sawing chipboard: Uncertainty (vibration) K

1.50 m/s²

Sawing chipboard: A-weighted sound power level, LWA

99.00 dB(A)

A-weighted sound pressure level, LpA

88.00 dB(A)

Sawing chipboard: Total vibration average, Ah

15.00 m/s²

Sawing chipboard: Uncertainty (noise) K

5.00 dB

Accessories
