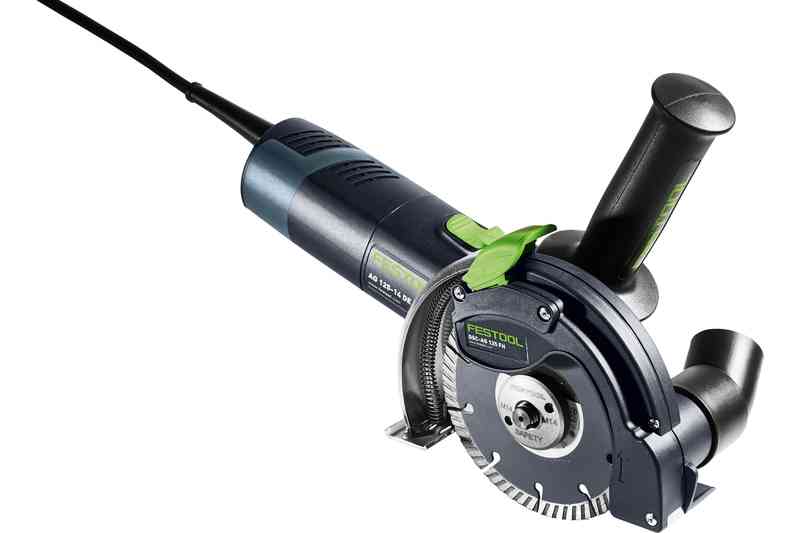

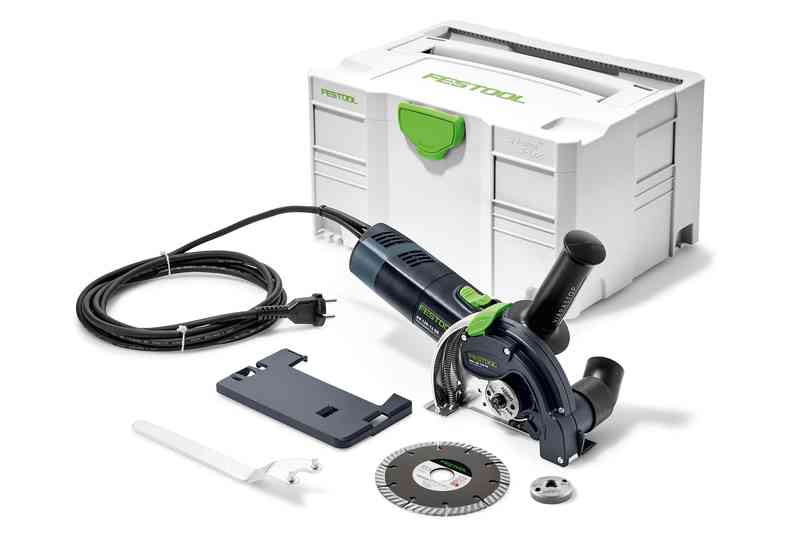

Diamond cutting system DSC-AG 125 FH

Click to enlarge images

Product	Name	Product	Price	Buy	Favorites
FT-576552	DSC-AG 125 FH-Plus	FT-576552 DSC-AG 125 FH-Plus	434,90 €

Descrizione:

Usage

Technical data

Power consumption

1 400 W

Idle engine speed

3 500 - 11 000 min⁻¹

Disc dia.

125 mm

Side clearance

23.00 mm

Front clearance

16.00 mm

Cutting depth

27 mm

Spindle thread/flange

M14

Dust extraction connection dia.

36/27 mm

Weight of cover/system

0,6/2,9 kg

Weight

2.80 kg

Drive type

Mains

Performance features

Antistatic function

Mobile dust extractors and tools with the antistatic function to prevent static charge from accumulating when working.
MMC Multi Material Control electronics

“Multi Material Control” power electronics with constant adjustable speed and temperature monitor for work on all types of material.
CLEANTEC

Standard connection (27/36/50 mm) for dust extraction, protects the operator and the environment.

Noise and vibration values

Surface sanding: Total vibration average, Ah

4.20 m/s²

Surface sanding: Uncertainty (noise) K

1.60 dB

Surface sanding: Uncertainty (vibration) K

1.50 m/s²

Surface sanding: A-weighted sound pressure level, LpA

90.00 dB(A)

Surface sanding: A-weighted sound power level, LWA

101.00 dB(A)

Accessories
