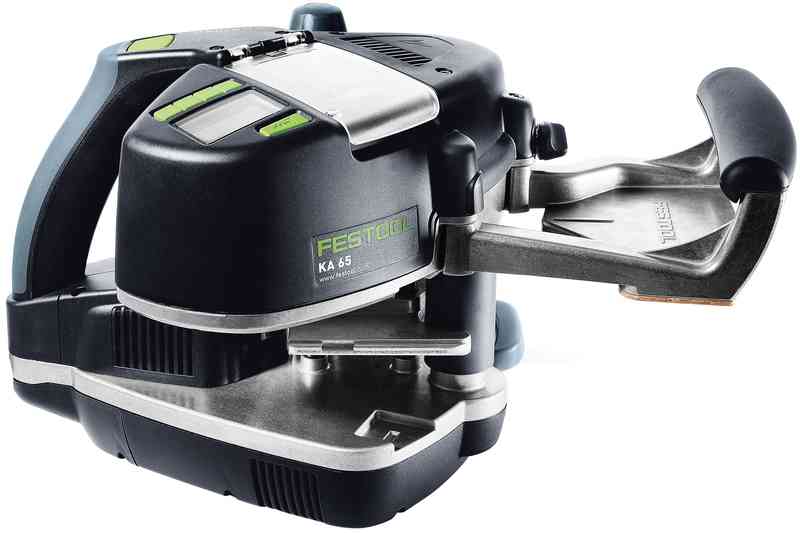

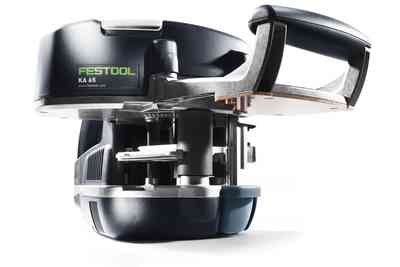

Edge bander CONTURO KA 65 Plus

Click to enlarge images

Product	Name	Product	Price	Buy	Favorites
FT-577836	KA 65-Plus	FT-577836 KA 65-Plus	3 535,48 €

Descrizione:

Usage

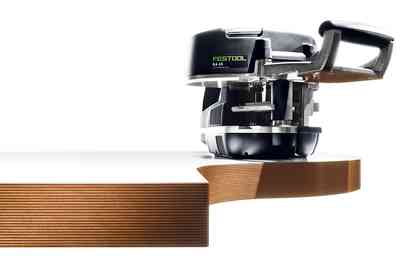

Affixing wooden, plastic or laminated plastic edging to panel materials

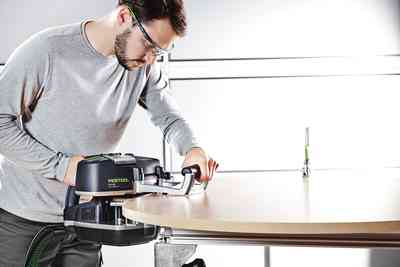

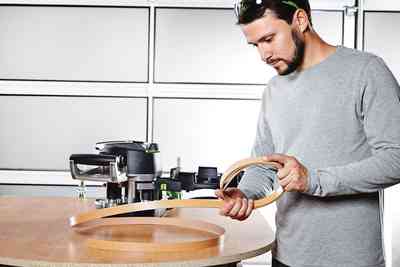

Possible to attach edging to simple rectangular components or more complex free forms
Also as an addition to the machining centre, for affixing edging to complex free form and round elements

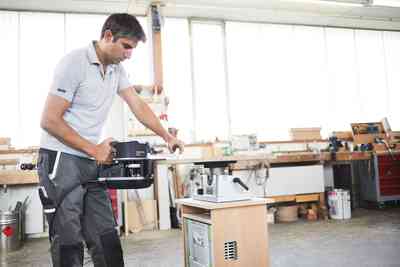

Suitable for mobile use, for rapidly reworking edges in situ

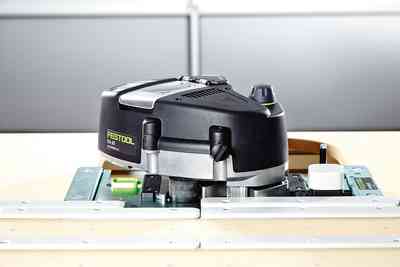

Suitable for stationary use and small batches, straight edges, free form elements and gluing inclined edges, angle from 0-47°

Technical data

Power consumption

1 200 W

Edge height

18 - 65 mm

Edge thickness

0,5 - 3,0 mm

Inner radius

> 50 mm

Heating time

8.00 min

Melting temperature

100 - 210 °C

Feed speed

2/4 m/min

Safety class

Weight

8.40 kg

Drive type

Mains

Performance features

Antistatic function

Mobile dust extractors and tools with the antistatic function to prevent static charge from accumulating when working.
FastFix

Makes changing routing, sawing, planing, sanding, drilling and screwdriving tools easier.

Noise and vibration values

Edge banders: A-weighted sound pressure level, LpA

65.00 dB(A)

Edge banders: A-weighted sound power level, LWA

76.00 dB(A)

Edge banders: Uncertainty (noise) K

3.00 dB

Edge banders: Uncertainty (vibration) K

1.50 m/s²

Edge banders: Total vibration average, Ah

2.50 m/s²
