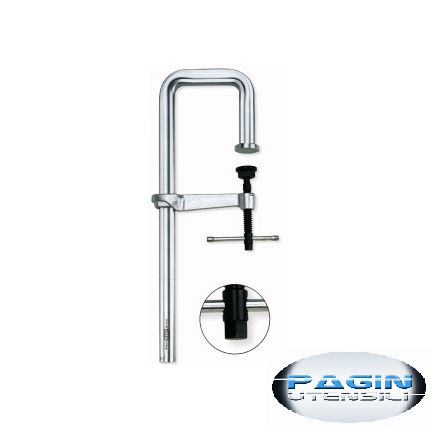

High performance STBU U-shaped clamp for heavy machining
Click to enlarge images
Descrizione:
- Clamping force up to 22,000 N a tightening torque of 80 Nm
- Clamping without obstacles on both sides, beyond any obstacle
- With 19mm hex on the end of the screw
- Long service life thanks to the special pressure plate with sintered steel insert, can be swiveled up to 35 °
| Product | Product | Price | Buy | Description | Favorites |
|---|---|---|---|---|---|

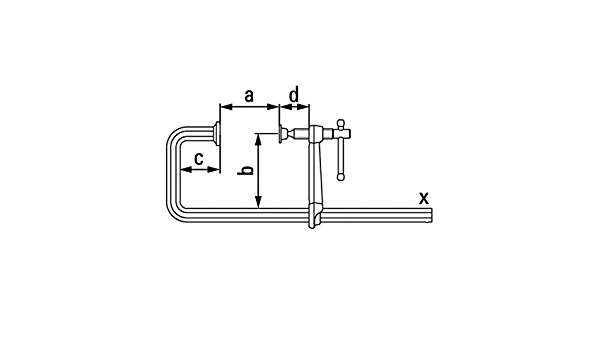

| BY-STBU40-17-15 | BY-STBU40-17-15 | 268,57 € | a=500mm b=175mm c=150mm d=110mm |
*All the prices include 22% Italian VAT
