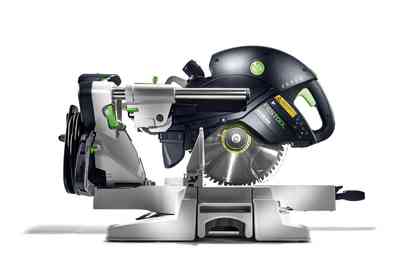

KAPEX KS 120 R sliding compound mitre saw
Click to enlarge images
| Product | Name | Product | Price | Buy | Favorites |
|---|---|---|---|---|---|

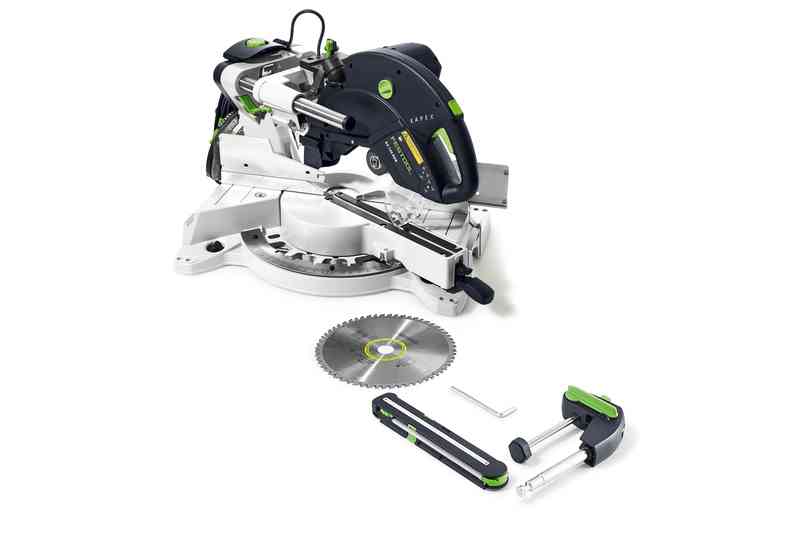

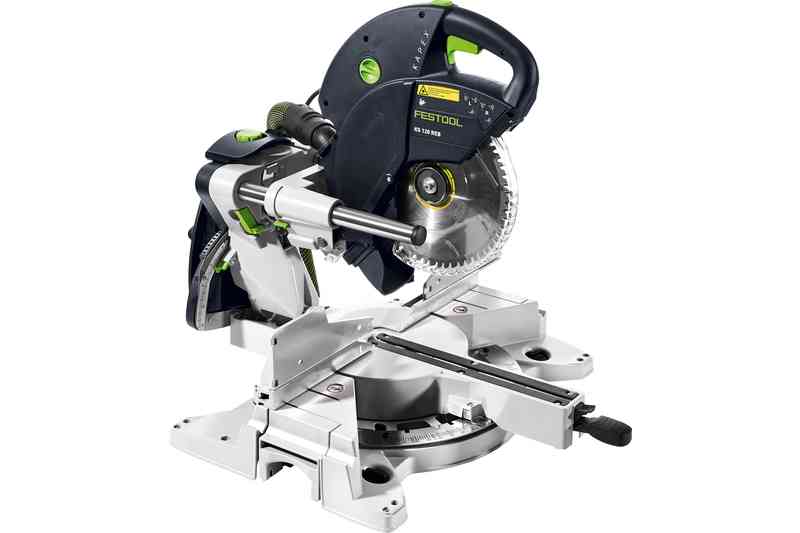

 FT-575302 | KS 120 REB | FT-575302 KS 120 REB | 1 660,00 € | ||

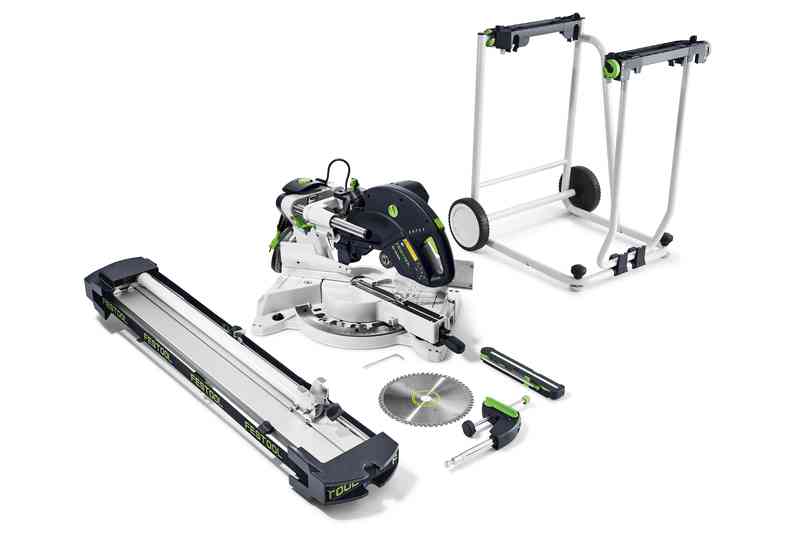

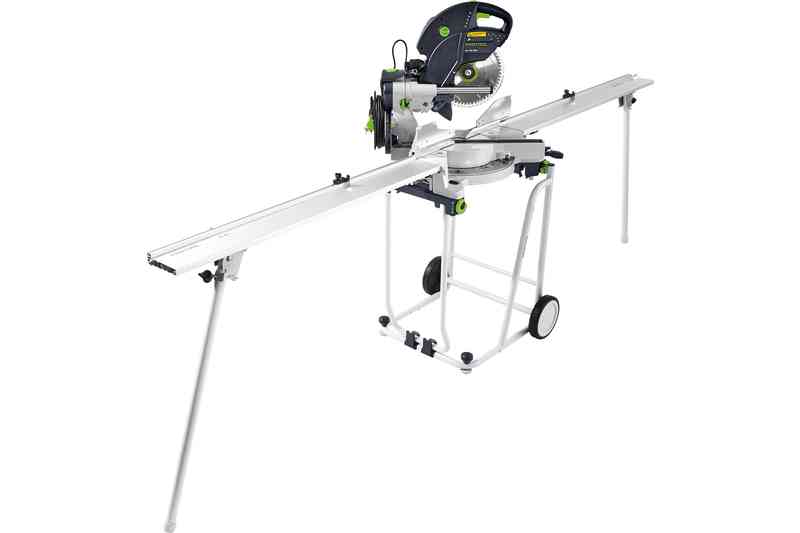

 FT-575313 | KS 120 REB-Set-UG | FT-575313 KS 120 REB-Set-UG | 2 566,27 € | ||

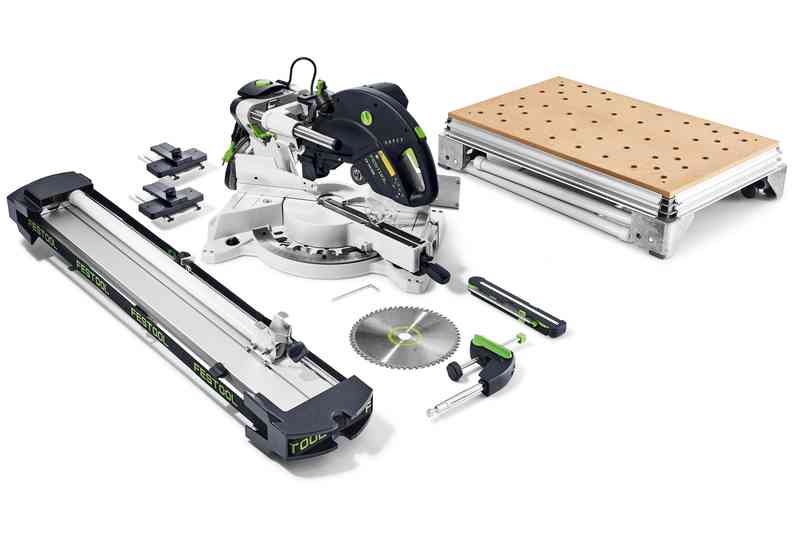

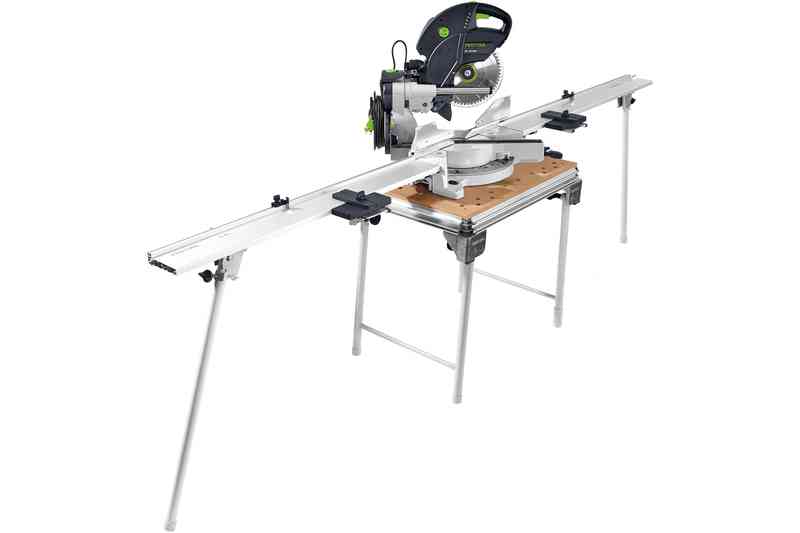

 FT-576663 | KS 120 REB-Set-MFT | FT-576663 KS 120 REB-Set-MFT | 2 922,82 € |
Descrizione:
Usage
Main applications
- Trimming skirting boards and cornices up to 120 mm in height – no calculations
- Cutting boards and panels up to 305 x 88 mm
- Trimming crown mouldings up to 168 mm in their original wall position
- Trimming square timber and beams up to 88 mm thick
Technical Data
Technical data
Power consumption
1 600 W
Idle engine speed
1 400 - 3 400 min⁻¹
Saw blade diameter
260.00 mm
Cutting depth 90°/90°
305 x 88 mm
Cutting depth at 45°/90°
215 x 88 mm
Special cutting depth 90°/90°
60 x 120 mm
Crown moulding diagonal cut 45°/90°
168.00 mm
Inclination angle
47/47 °
Mitre angle
50/60 °
Dimensions (W x D x H)
713 x 500 x 470 mm
Weight
23.10 kg
Dust extraction connection dia.
27/36 mm
Special cut. depth 45°/90° (left)
40 x 120 mm
Special cutting depth 45°/90° (right)
20 x 120 mm
Cutting depth 50°/90° (left)
196 x 88 mm
Cutting depth 60°/90° (right)
152 x 88 mm
Cutting depth 45°/45° (left)
215 x 55 mm
Cutting depth 45°/45° (right)
215 x 35 mm
Crown moulding diagonal cut at 90°/90°
168.00 mm
Work height
900.00 mm
Drive type
Mains
Performance features
-
Antistatic function
Mobile dust extractors and tools with the antistatic function to prevent static charge from accumulating when working.
-
MMC digital electronics
Processor controlled “Multi Material Control” power electronics provide adjustable and constant speeds as well as temperature monitoring for work on all types of material.
-
FastFix
Makes changing routing, sawing, planing, sanding, drilling and screwdriving tools easier.
-

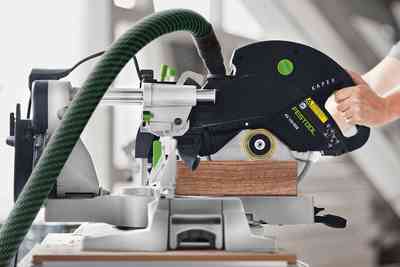

CLEANTEC
Integrated bayonet fitting as the connecting element between the extractor and the tool.
-
Quick-acting brake
For safe work when planing, sawing and routing.
-

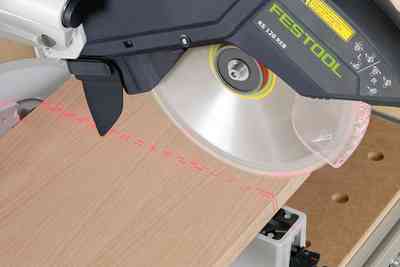

Precision dual-line laser
Two laser lines for simple, precision positioning along the scribe mark from the left or right.
Noise and vibration values
Sawing: Total vibration average, Ah
2.50 m/s²
Sawing: Uncertainty (noise) K
3.00 dB
Sawing: A-weighted sound power level, LWA
101.00 dB(A)
Sawing: A-weighted sound pressure level, LpA
88.00 dB(A)
Sawing: Uncertainty (vibration) K
1.50 m/s²
Accessories
 AB-KS 120 | 88,54 € | |
 KL-KS 120 | 64,73 € | |
 SZ-KS | 18,44 € | |
 MFT KAPEX | 450,00 € | |
 KA-KS 120-R | 421,94 € | |
 KA-KS 120-L | 421,94 € | |
 UG-KAPEX KS 120 | 482,31 € | |
 KA-UG-KS 120-R | 294,50 € | |
 KA-UG-KS 120-L | 294,50 € | |
 UG-KA-KS 120-Set | 1 048,59 € | |
 KA-UG-KS 120-R/L | 588,38 € | |
 260x2,5x30 W60 | 185,84 € | |
 260x2,5x30 W80 | 234,63 € | |
 260x2,4x30 TF68 | 229,52 € | |
 260x2,5x30 WZ/FA64 | 229,52 € |
*All the prices include 22% Italian VAT
