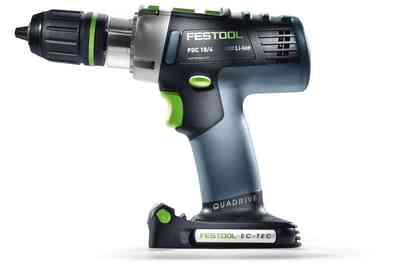

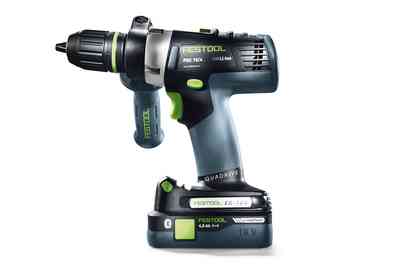

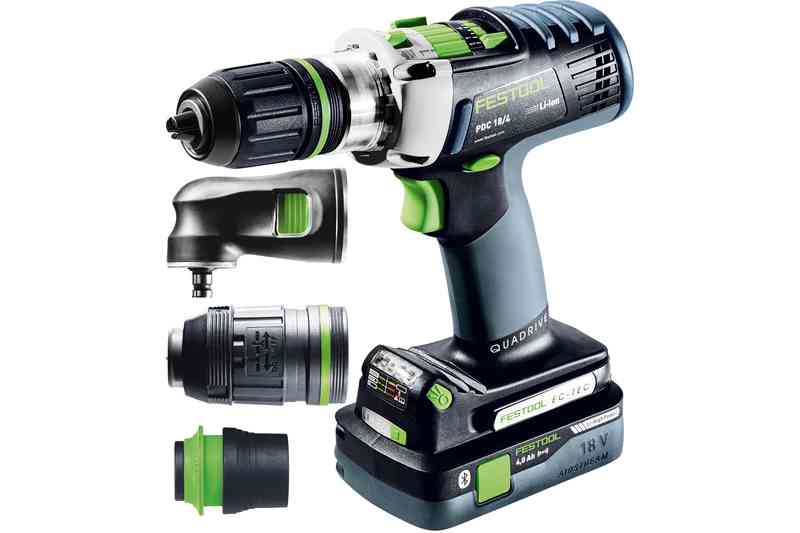

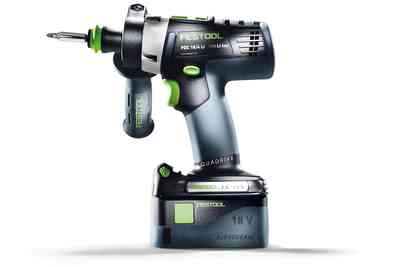

QUADRIVE PDC cordless percussion drills
Click to enlarge images
| Product | Name | Product | Price | Buy | Favorites |
|---|---|---|---|---|---|

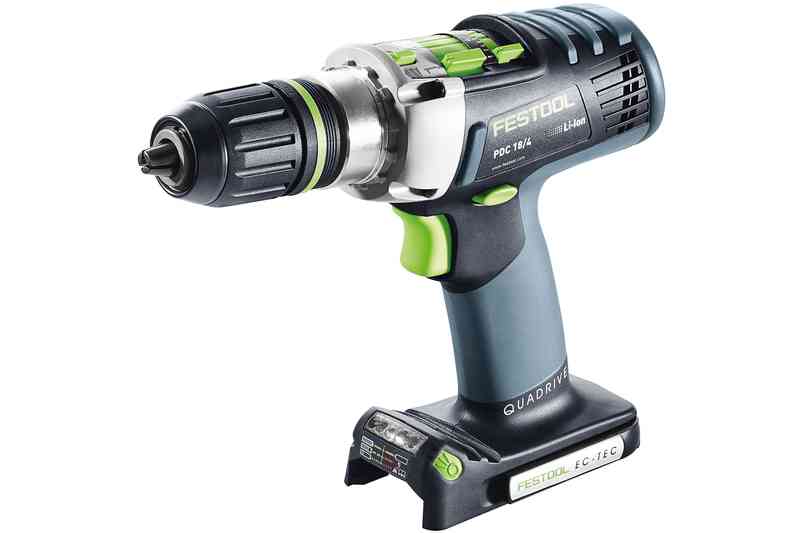

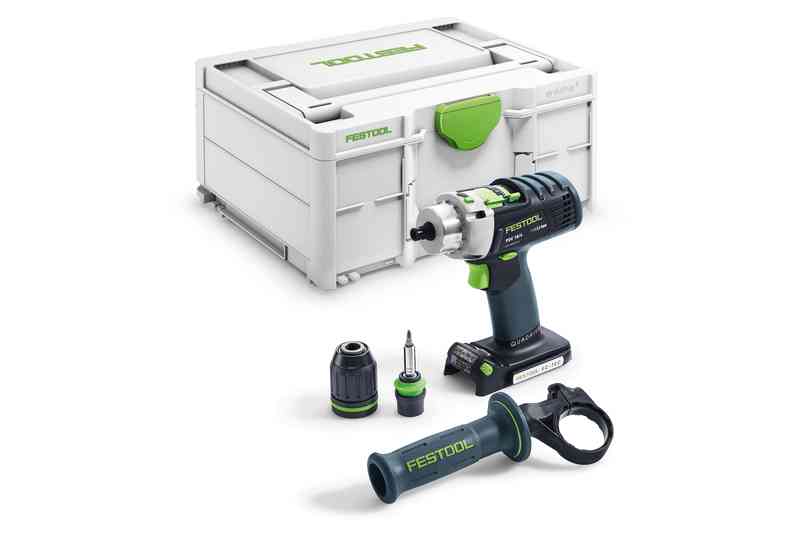

 FT-575604 | TPC 18/4 I-Basic | FT-575604 TPC 18/4 I-Basic | 377,59 € | ||

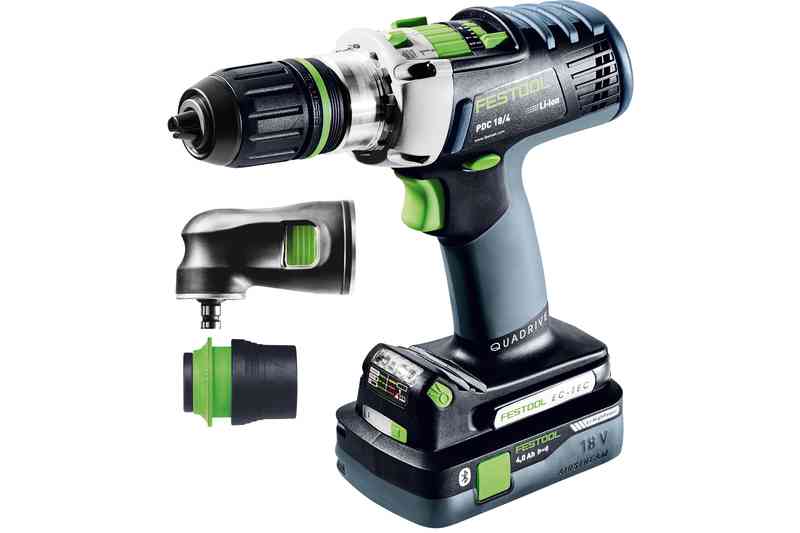

 FT-575605XX | TPC 18/4 5,2/4,0 I-Plus | FT-575605XX TPC 18/4 5,2/4,0 I-Plus | 698,04 € | Not Available | |

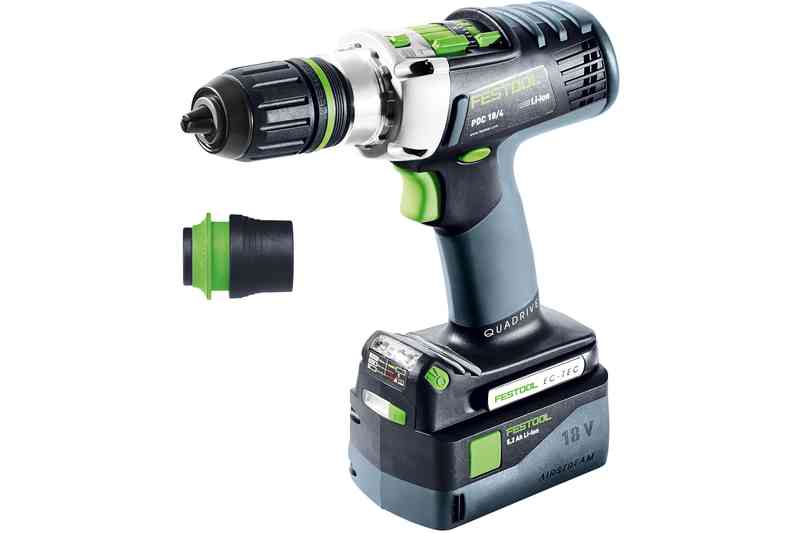

 FT-575605 | TPC 18/4 5,2/4,0 I-Plus | FT-575605 TPC 18/4 5,2/4,0 I-Plus | 700,88 € | ||

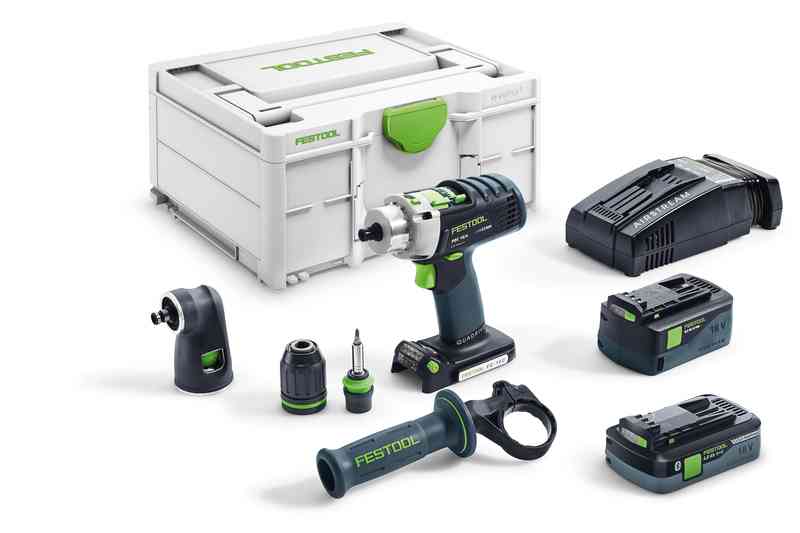

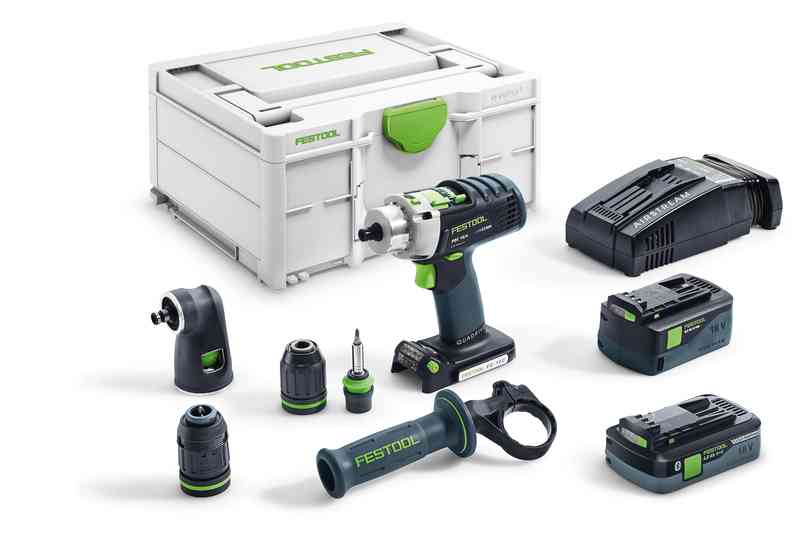

 FT-577247 | TPC 18/4 5,2/4,0 I-Set | FT-577247 TPC 18/4 5,2/4,0 I-Set | 888,06 € | ||

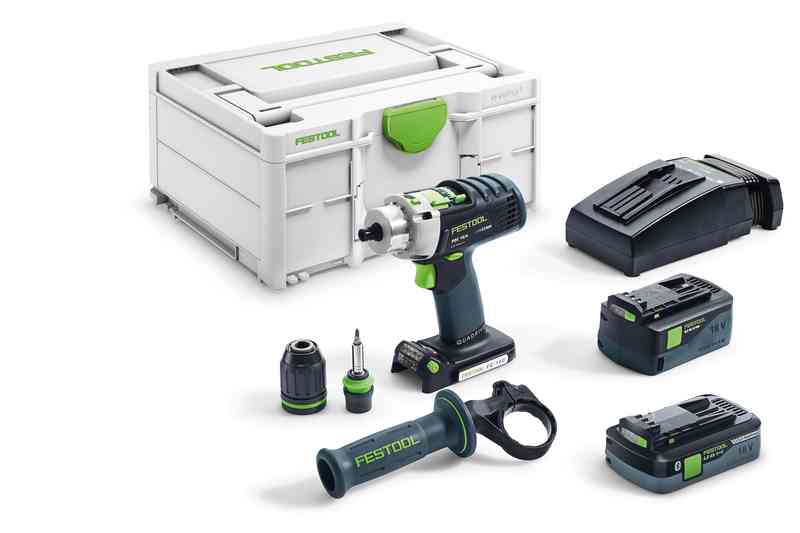

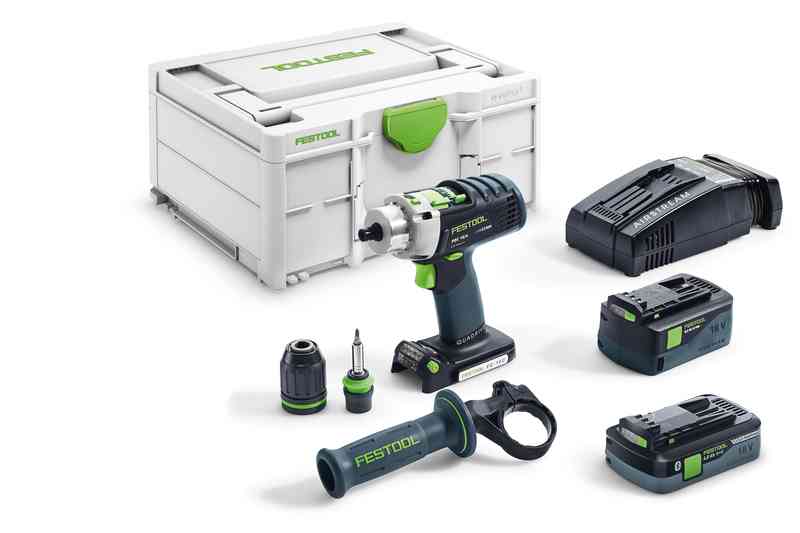

 FT-577622 | TPC 18/4 5,0/4,0 I-Set/XL | FT-577622 TPC 18/4 5,0/4,0 I-Set/XL | 942,72 € |
Descrizione:
Usage
Main applications

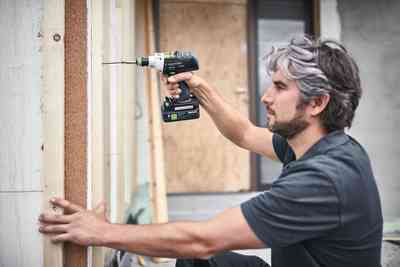

- Production of wooden substructures, frame structures
- Installation of doors and windows

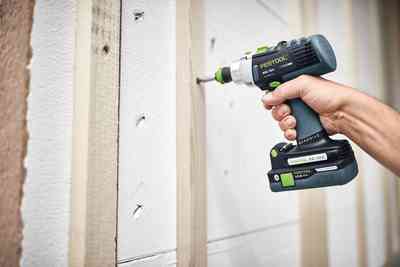

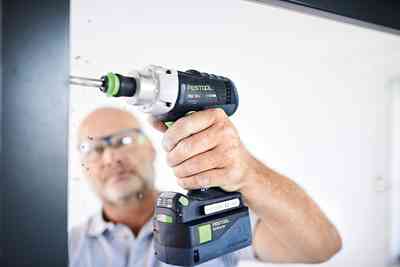

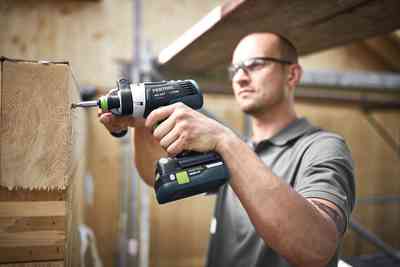

- Drilling and screwdriving in wood, metal and plastic
- Drive screws into wood up to 10x300 mm
- Drilling in wood up to 50 mm with Forstner drill bits
Technical Data
Technical data
Battery voltage
18 V
Gears
4
Idling speed, 1st gear/2nd gear
0 - 400/0 - 850 min⁻¹
Idling speed, 3rd/4th gear
0 - 1850/0 - 3800 min⁻¹
Max. number of strokes
76000.00 min⁻¹
Drilling diameter, wood/steel
50/13 mm
Drilling diameter in brickwork
10.00 mm
Torque adjustment 1st/2nd gear
1.2 - 11.5/0.8 - 7.2 Nm
Max. torque, wood/steel
40/60 Nm
Chuck range
1.5 - 13 mm
Li-Ion battery capacity
4,0/5,2 Ah
Weight with Li-Ion battery
1,9/2,0 kg
Drive type
Battery
Performance features
-
Electronic
Speed control for adjusting to all types of materials.
-
FastFix
Makes changing routing, sawing, planing, sanding, drilling and screwdriving tools easier.
-
Torque shut-off
Intelligent technology ensures the optimum screwdriving force for every material.
-
EC-TEC motor
The EC-TEC drive concept generates an extraordinary amount of power while consuming extremely low amounts of energy.
Noise and vibration values
Impact drilling in concrete: Total vibration average, Ah
18.00 m/s²
Impact drilling in concrete: Uncertainty (noise) K
3.00 dB
Impact drilling in concrete: Uncertainty (vibration) K
1.50 m/s²
Impact drilling in concrete: A-weighted sound pressure level, LpA
95.00 dB(A)
Impact drilling in concrete: A-weighted sound power level, LWA
106.00 dB(A)
Drilling in metal: Total vibration average, Ah
3.00 m/s²
Drilling in metal: Uncertainty (noise) K
5.00 dB
Drilling in metal: Uncertainty (vibration) K
1.50 m/s²
Drilling in metal: A-weighted sound pressure level, LpA
63.00 dB(A)
Drilling in metal: A-weighted sound power level, LWA
74.00 dB(A)
Fastening: Total vibration average, Ah
3.00 m/s²
Fastening: Uncertainty (noise) K
3.00 dB
Fastening: Uncertainty (vibration) K
1.50 m/s²
Fastening: A-weighted sound pressure level, LpA
60.00 dB(A)
Fastening: A-weighted sound power level, LWA
71.00 dB(A)
Accessories
 Assortimento di inserti SYS3 XXS CE-MX BHS 60 | 49,06 € | |
 Assortimento di inserti SYS3 XXS CE-TX BHS 60 | 49,06 € | |
 Assortimento di inserti SYS3 XXS CE-PZ BHS 60 | 49,06 € | |
 Assortimento di inserti SYS3 XXS CE-MX BH 60 | 30,44 € | |
 BP 18 Li 4,0 HPC-ASI | 127,96 € | |
 BP 18 Li 5,2 ASI | 154,02 € | Not Available |
 BP 18 Li 5,2 AS | 127,96 € | |
 BP 18 Li 6,2 ASI | 193,18 € | |
 BP 18 Li 6,2 AS | 167,09 € | |
 TCL 6 | 74,34 € | |
 FT-200178 SCA 8 | 114,90 € | Not Available |
 DB WOOD CE SET TL 6x | 75,86 € | |
 BITS + BHS 60 CE TL 24x | 49,27 € | |
 FT-769096 DB STONE CE SET TL | 71,14 € | Not Available |
 DB STONE CE D6 3x | 40,96 € | |
 DB STONE CE D8 3x | 44,40 € | |
 DB STONE CE D10 3x | 49,64 € | |
 TX 10-50/BH-SORT/31x | 42,74 € | |
 SW 8-DC UNI FF 2x | 18,80 € | |
 KC 13-1/2 MI | 87,14 € | |
 KC 13-1/2-K-FFP | 75,50 € | |
 FT-769097 AU-43 FFP | 210,59 € | Not Available |
 DB STONE CE D4 3x | 36,86 € | |
 BIT/BH-SORT/31x | 42,74 € | |
 AH-43/185 | 13,97 € | |
 DB STONE CE D5 3x | 37,61 € | |
 DC UNI FF | 147,00 € | |
 AH-43/230 | 17,27 € | |
SW 3/8"-DC UNI FF 2x | 18,80 € | |
 AD-3/8" FF | 76,76 € | |
 CENTROTEC BITS CE SET TL 6X | 55,53 € | |
 PZ 1-50 CENTRO/2 | 17,67 € | |
 PZ 2-50 CENTRO/2 | 17,67 € | |
 PZ 3-50 CENTRO/2 | 17,67 € | |
 PH 1-50 CENTRO/2 | 17,67 € | |
 PH 2-50 CENTRO/2 | 17,67 € | |
 PH 3-50 CENTRO/2 | 17,67 € | |
 TX 10-50 CENTRO/2 | 17,67 € | |
 TX 15-50 CENTRO/2 | 17,67 € | |
 TX 20-50 CENTRO/2 | 17,67 € | |
 TX 25-50 CENTRO/2 | 17,67 € | |
 TX 30-50 CENTRO/2 | 17,67 € | |
 TX 40-50 CENTRO/2 | 17,67 € | |
 CENTRO Bit-Set 1 | 49,64 € | |
 DB CE 50/12-Set 1 | 103,12 € | |
 BHS 60 CE | 41,70 € | |
 TX 10-25/10 | 17,04 € | |
 TX 15-25/10 | 17,04 € | |
 TX 20-25/10 | 17,04 € | |
 TX 25-25/10 | 17,04 € | |
 TX 30-25/10 | 17,04 € |
*All the prices include 22% Italian VAT
