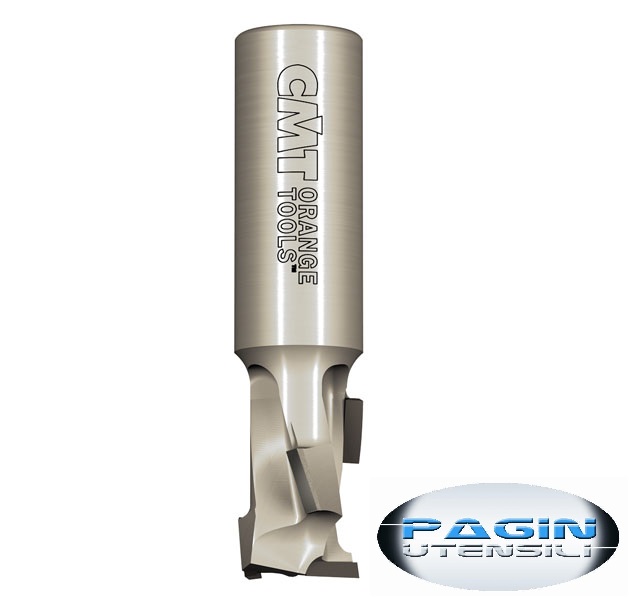

Router Cutters with Shear Angle
Click to enlarge images
Descrizione:
TECHNICAL DETAILS:
- Super strengh steel.
- Shear Angle - DP cutting edge (H2.5)
- HW plunging tip for diagonal plunge-cutting
- Resharpenable cutter (max 3 times)
- Max feed speed 5m/min
APPLICATION:
for contour cutting and panel sizing on hard and abrasive materials such as laminates, MDF and melamine. For use on machining centers, point to point boring machines and CNC pantographs equipped with adaptors and chucks.

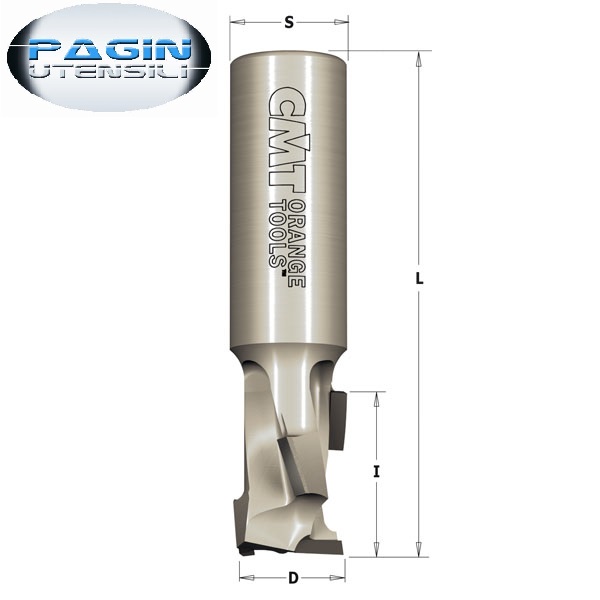

| Product | Product | Price | Buy | D | I | L | S | Z | RH-LH | Favorites |
|---|---|---|---|---|---|---|---|---|---|---|
| 140.120.61 | 140.120.61 | 123,19 € | 12 | 27 | 75 | 12x40 | 1+1 (3DP + 1HW) | |||
| 140.121.61 | 140.121.61 | 164,26 € | 12 | 35 | 84 | 12x40 | 1+1 (4DP + 1HW) | |||
| 140.127.61 | 140.127.61 | 123,19 € | 12,7 | 27 | 75 | 12,7x40 | 1+1 (3DP + 1HW) | |||
| 140.128.61 | 140.128.61 | 164,26 € | 12,7 | 35 | 84 | 12,7x40 | 1+1 (4DP + 1HW) | |||
| 140.158.61 | 140.158.61 | 123,19 € | 15,87 | 27 | 87 | 15,87x50 | 1+1 (3DP + 1HW) | |||
| 140.159.61 | 140.159.61 | 205,32 € | 15,87 | 44 | 103 | 15,87x50 | 1+1 (5DP + 1HW) | |||
| 140.160.61 | 140.160.61 | 123,19 € | 16 | 27 | 87 | 16x50 | 1+1 (3DP + 1HW) | |||
| 140.161.61 | 140.161.61 | 164,26 € | 16 | 35 | 95 | 16x50 | 1+1 (4DP + 1HW) | |||
| 140.180.61 | 140.180.61 | 123,19 € | 18 | 27 | 87 | 20x50 | 1+1 (3DP + 1HW) | |||
| 140.181.61 | 140.181.61 | 164,26 € | 18 | 35 | 95 | 20x50 | 1+1 (4DP + 1HW) | |||
| 140.182.61 | 140.182.61 | 205,32 € | 18 | 44 | 103 | 20x50 | 1+1 (5DP + 1HW) | |||
| 140.190.61 | 140.190.61 | 123,19 € | 19,05 | 27 | 87 | 19,05x50 | 1+1 (3DP + 1HW) | |||
| 140.192.61 | 140.192.61 | 205,32 € | 19,05 | 44 | 103 | 19,05x50 | 1+1 (5DP + 1HW) | |||
| 140.200.61 | 140.200.61 | 123,19 € | 20 | 27 | 87 | 20x50 | 1+1 (3DP + 1HW) | |||
| 140.201.61 | 140.201.61 | 164,26 € | 20 | 35 | 95 | 20x50 | 1+1 (4DP + 1HW) | |||
| 140.202.61 | 140.202.61 | 205,32 € | 20 | 44 | 103 | 20x50 | 1+1 (5DP + 1HW) | |||
| 140.203.61 | 140.203.61 | 246,39 € | 20 | 53 | 112 | 20x50 | 1+1 (6DP + 1HW) |
*All the prices include 22% Italian VAT
