Saw benches BERNARDO

Click to enlarge images

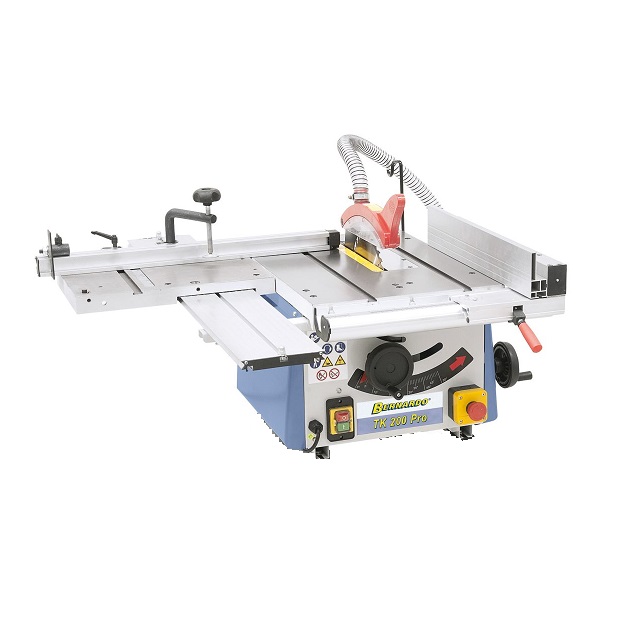

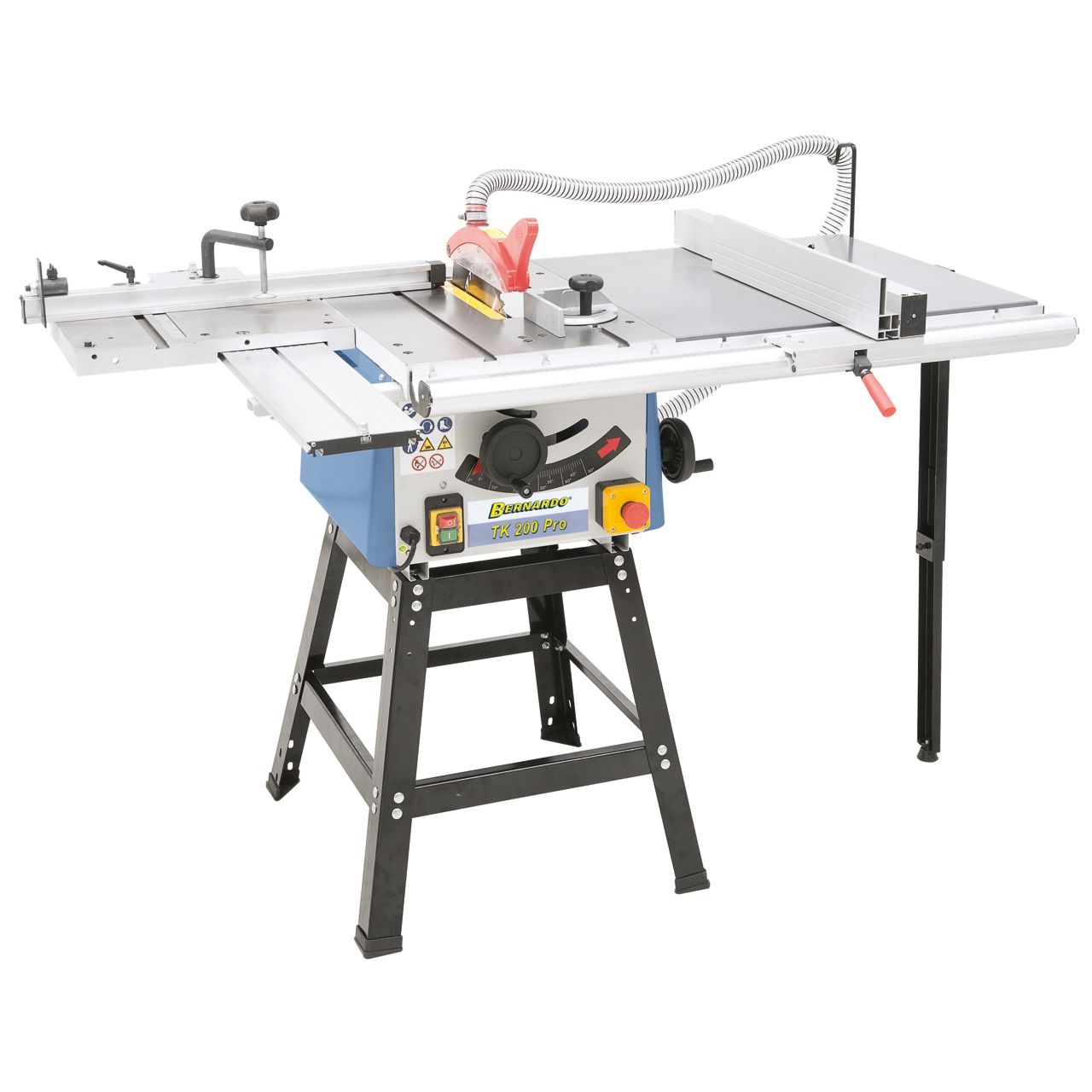

TK 200 PRO
TK 250 PRO
PKS 250 P-230V
Descrizione:
  TK 200 PRO TK 250 PRO PKS 250
Table measures 600 x 400 mm 670 x 430 mm 670 x 310 mm
Roller table* 400 x 250 mm 400 x 250 mm 1300 x 250 mm
Roller table stroke* 720 mm 920 mm
Max. blade diameter 200 x 30 mm 250 x 30 mm 254 x 30 mm
Cutting height max. 90°/45° 60 / 45 mm 80 / 60 mm 80 / 65 mm
Cutting width on parallel stop 200 mm** 200 mm** 670 mm
Table height 350 mm 355 mm 870 mm
Table extension* 560 x 600 mm 600 x 670 mm 670 x 400 mm
Main blade speed 4750 giri/min 4750 giri/min 4750 giri/min
Ø suction connection 100 mm 100 mm 100 mm
Motor input power S1 100% 1,1 kW (1,5 CV) 1,5 kW (2,0 CV) 2,2 kW (3,0 CV)
S6 motor output power 40% 1,5 kW (2,0 CV) 2,1 kW (2,8 CV) 3,0 kW (4,0 CV)
Voltage 230 V 230 V 230 V
Machine measurements (L x W x H) 770 x 540 x 520 850 x 600 x 550 1300 x 1180 x 1100
Approximate weight 55 kg 67 kg 108 kg
Edge length     1020 mm
* opzionale  ** 725 mm con estensione tavolo opzionale

Banchi sega TK 200 PRO e TK 250 PRO forniti senza basamento.

ProductProductPriceBuy
Description
Favorites
BE-TK200PRO
BE-TK200PRO
715,16 €
Banco sega TK 200 PRO senza basamento
BE-TK250PRO
BE-TK250PRO
1 106,46 €
Not AvailableBanco sega TK 250 PRO senza basamento
BE-PKS250P
BE-PKS250P
1 625,44 €
Not AvailableBanco sega PKS 250 P-230V
Spare Parts
Accessori opzionaliAccessori opzionali+
*All the prices include 22% Italian VAT
