Saw benches BERNARDO

Click to enlarge images

Descrizione:

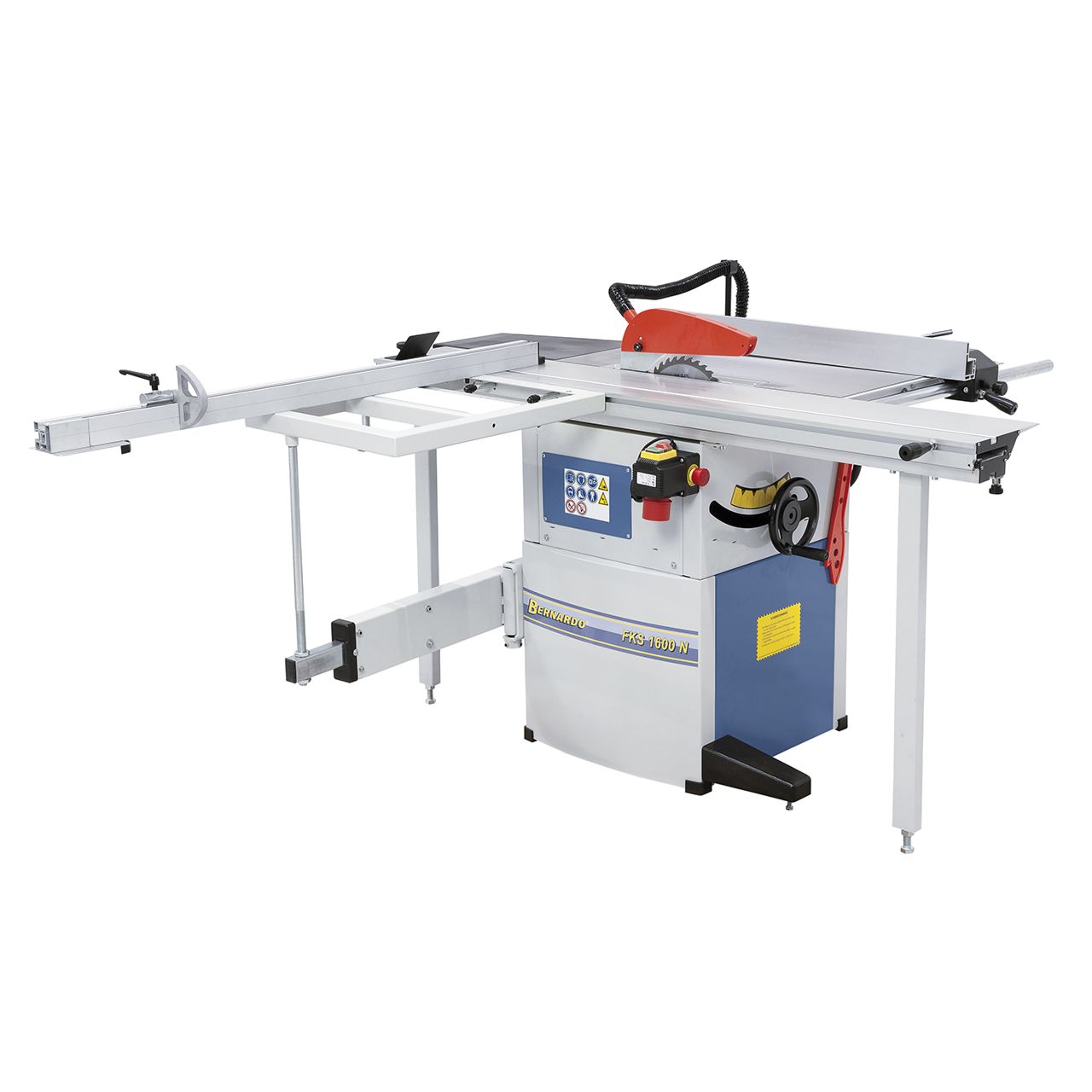

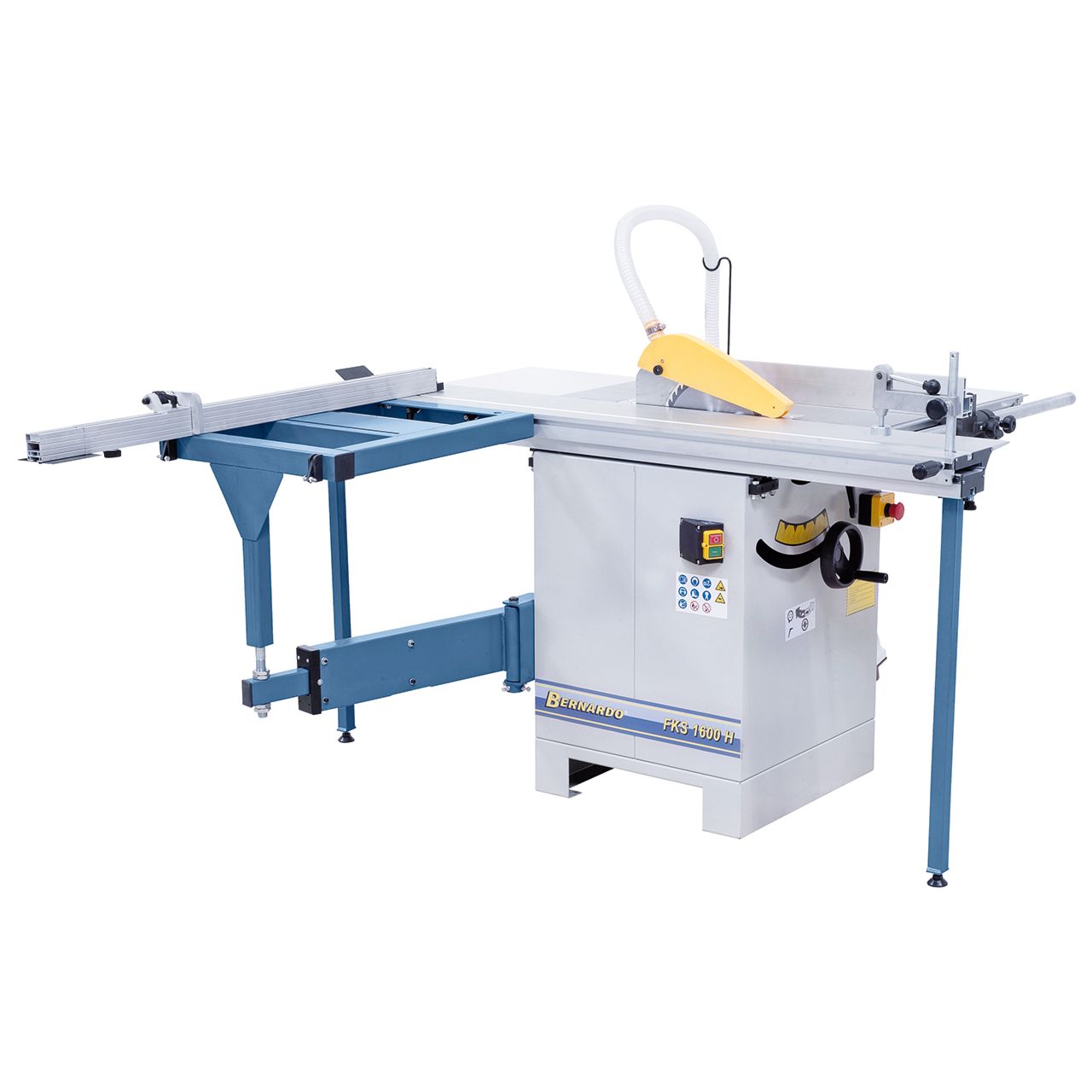

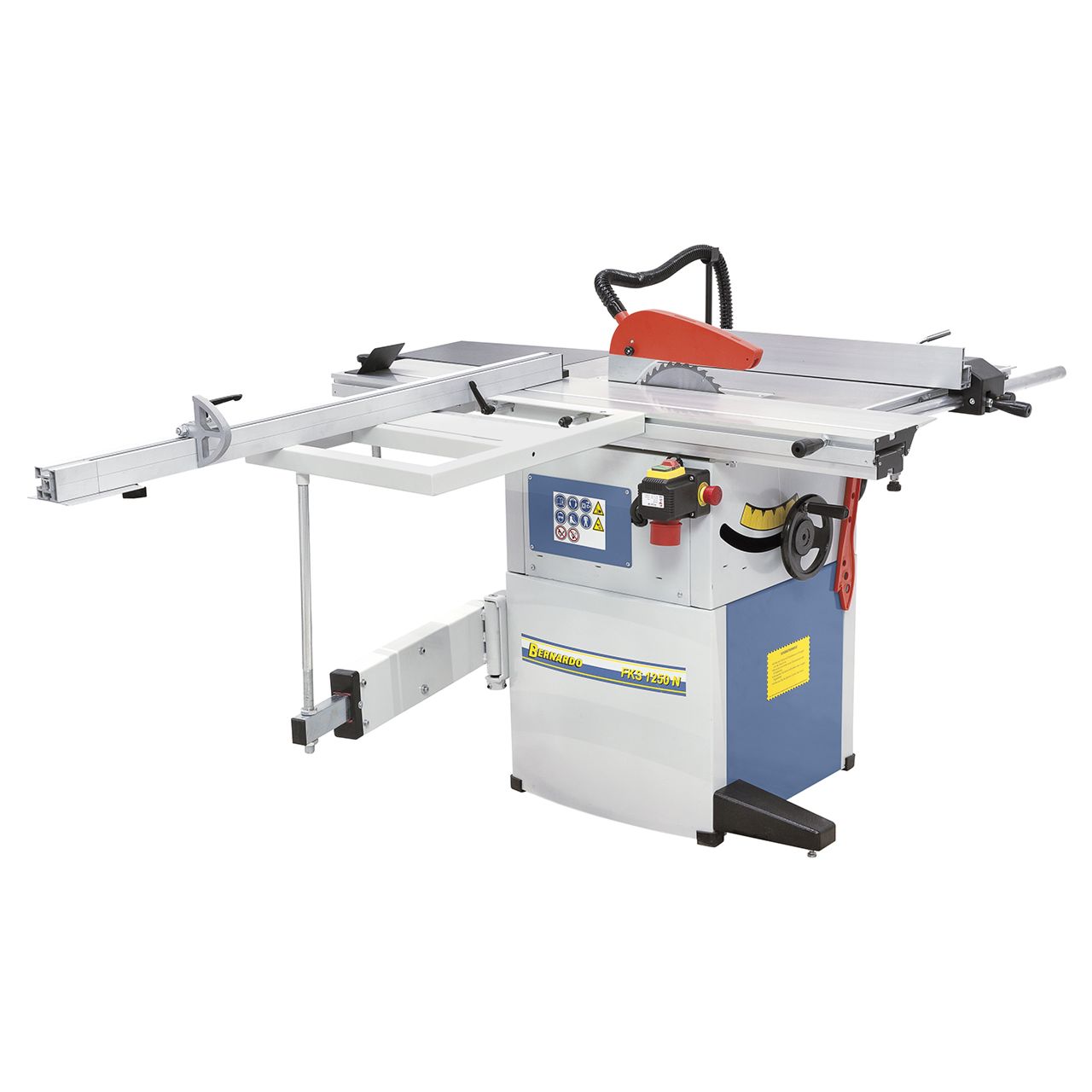

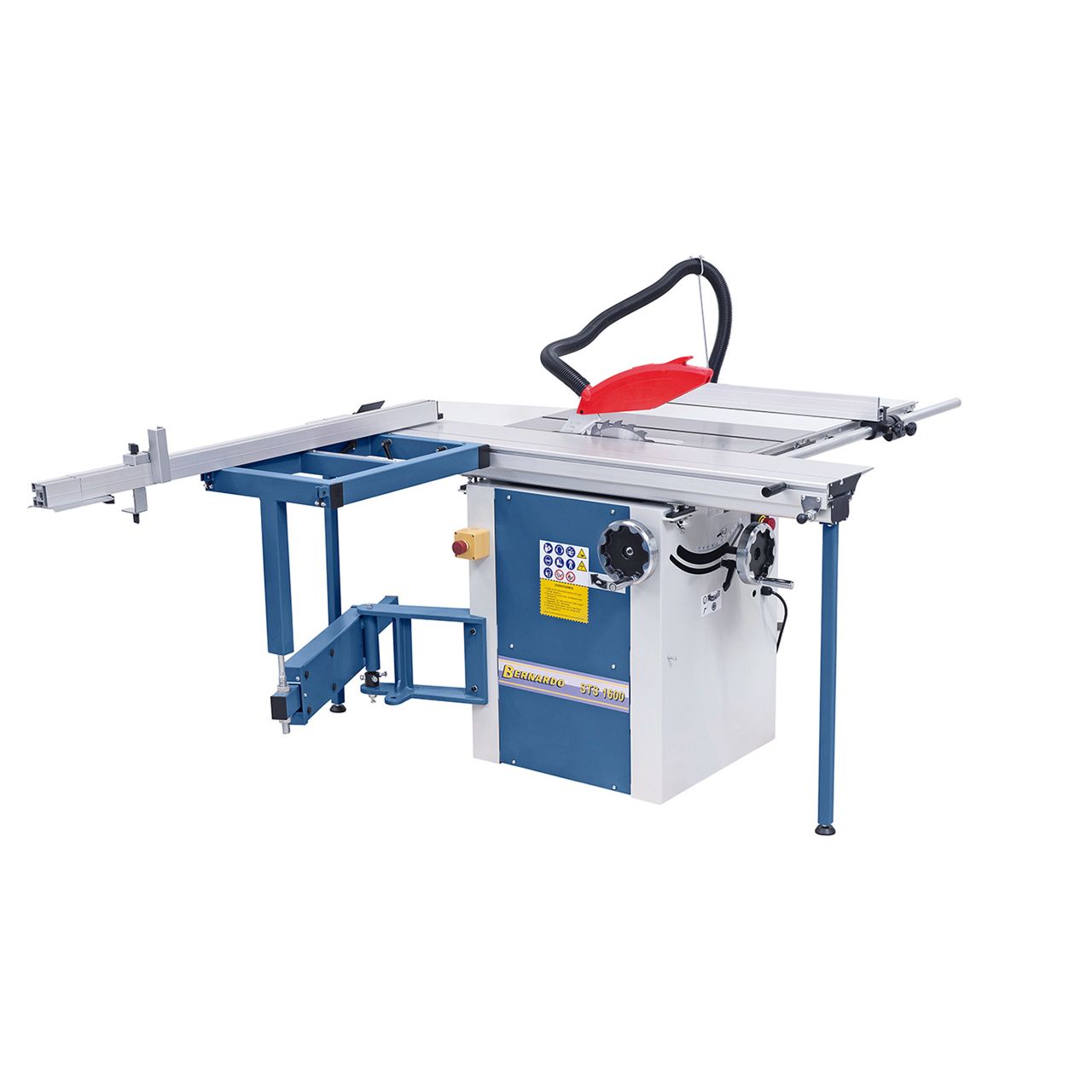

	*FKS1600N*	*FKS1250N*	*FKS1300H*	*FKS1600H*	*STS1600*
*Table measures*	800 x 350 mm	800 x 350 mm	790 x 350 mm	790 x 350 mm	760 x 350 mm
*Table size*	1610 x 240 mm	1320 x 240 mm	1300 x 240 mm	1600 x 240 mm	1600 x 240 mm
*Edge length*	1600 mm	1250 mm	1300 mm	1600 mm	1600 mm
*Max. blade diameter*	254 x 30 mm	254 x 30 mm	254 x 30 mm	254 x 30 mm	315 x 30 mm
*Max. cutting height 90°/45°*	80 / 54 mm	80 / 54 mm	75 / 60 mm	75 / 60 mm	100 / 75 mm
*Cutting width on parallel stop*	610 mm	610 mm	620 mm	620 mm	900 mm
*Table height*	860 mm	860 mm	815 mm	815 mm	870 mm
*Table extension*	350 x 410 mm	350 x 410 mm	350 x 350 mm	350 x 350 mm	500 x 350 mm
*Table extension*	800 x 270 mm	800 x 270 mm	790 x 270 mm	790 x 270 mm	760 x 600 mm
*Squaring machine*	600 x 460 mm	600 x 460 mm	600 x 480 mm	600 x 480 mm	600 x 410 mm
*Main blade speed*	4060 giri/min	4060 giri/min	4000 giri/min	4000 giri/min	4250 giri/min
*Suction attachment ø*	100 mm	100 mm	100 mm	100 mm	100 mm
*Motor input power* *S1 100%*	1,5 kW (2,0 CV)	1,5 kW (2,0 CV)	2,2 kW (3,0 CV)	2,2 kW (3,0 CV)	2,2 kW (3,0 CV)
*Motor output power S6 40%*	2,1 kW (2,8 CV)	2,1 kW (2,8 CV)	3,0 kW (4,0 CV)	3,0 kW (4,0 CV)	3,0 kW (4,0 CV)
*Voltage*	230 V	230 V	230 V	230 V	230 V
*Machine dimensions (L x P x H) (mm)*	1610 x 2100 x 1200	1350 x 2100 x 1200	1300 x 1700 x 1000	1600 x 1700 x 1000	2000 x 2500 x 1270
*Weight ca.*	170 kg	160 kg	140 kg	150 kg	204 kg

Product	Product	Price	Buy	Description	Favorites
BE-FKS1600N	BE-FKS1600N	2 792,09 €		Squadatrice FKS 1600 N-230V
BE-FKS1250N	BE-FKS1250N	2 302,19 €		Squadatrice FKS 1250 N-230V
BE-FKS1300H	BE-FKS1300H	2 414,28 €		Squadratrice FKS 1300 H-230V
BE-FKS1600H	BE-FKS1600H	2 651,97 €		Squadatrice FKS 1600 H-230V
BE-STS1600	BE-STS1600	3 414,86 €		Squadratrice STS1600-230V

*All the prices include 22% Italian VAT
