Sword saw IS 330

Click to enlarge images

Product	Name	Product	Price	Buy	Favorites

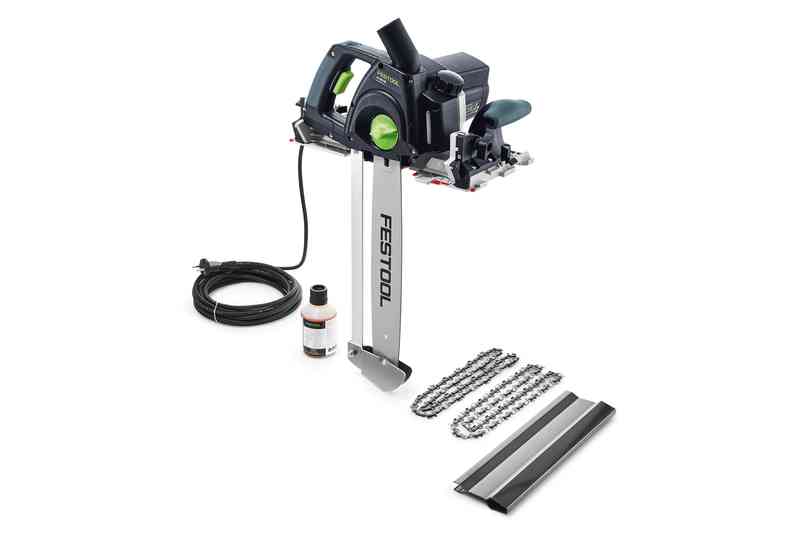

FT-575979	IS 330 EB	FT-575979 IS 330 EB	1 480,16 €

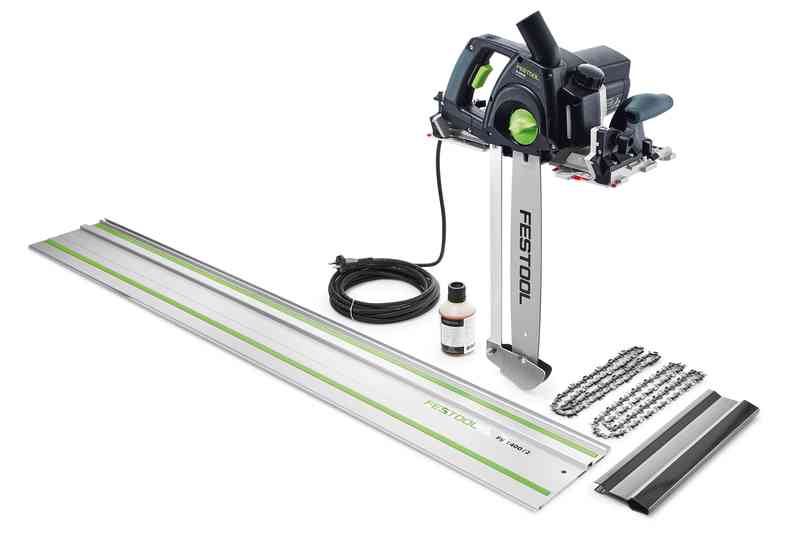

FT-575983	IS 330 EB-FS	FT-575983 IS 330 EB-FS	1 551,79 €

Descrizione:

Usage

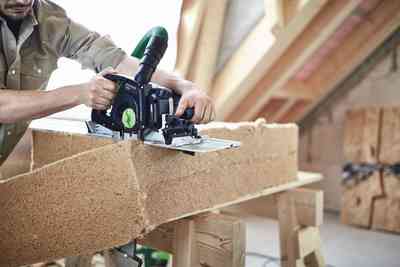

Cutting pressure-resistant insulating materials such as wood fibres, PUR or EPP, etc. to size

Technical data

Power consumption

1 600 W

Idle engine speed

4 600 min⁻¹

Ctting depth 0°, 90°/45°/60°

330/230/165 mm

Mitre cuts

0 - 60 °

Cutting speed (idling)

12.00 m/s

Blade position

0 - 10 °

Weight

7.00 kg

Drive type

Mains

Performance features

MMC Multi Material Control electronics

“Multi Material Control” power electronics with constant adjustable speed and temperature monitor for work on all types of material.
Guide system

Patented guide system for safe guidance of saws and router bits.
Electronic overload protection

Protects the motor with blocking tool.
Electronic monitoring of the winding temperature

Electronic monitoring of the coil temperature protects against damage to the motor.
Starting current limiter

Simple start for household fuses.
Standard connection for dust extractors

Standard connection for dust extractors.
Electro-dynamic run-down brake

The chainsaw will stop immediately once the speed controller is released.

Noise and vibration values

Sawing: Total vibration average, Ah

3.40 m/s²

Sawing: Uncertainty (vibration) K

1.50 m/s²

Sawing: A-weighted sound power level, LWA

103.00 dB(A)

Sawing: Uncertainty (noise) K

3.00 dB

Sawing: A-weighted sound pressure level, LpA

92.00 dB(A)
