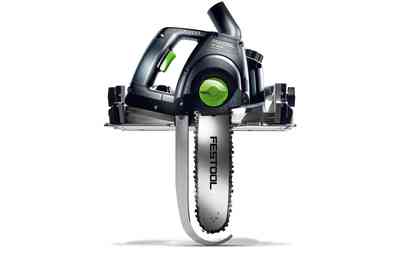

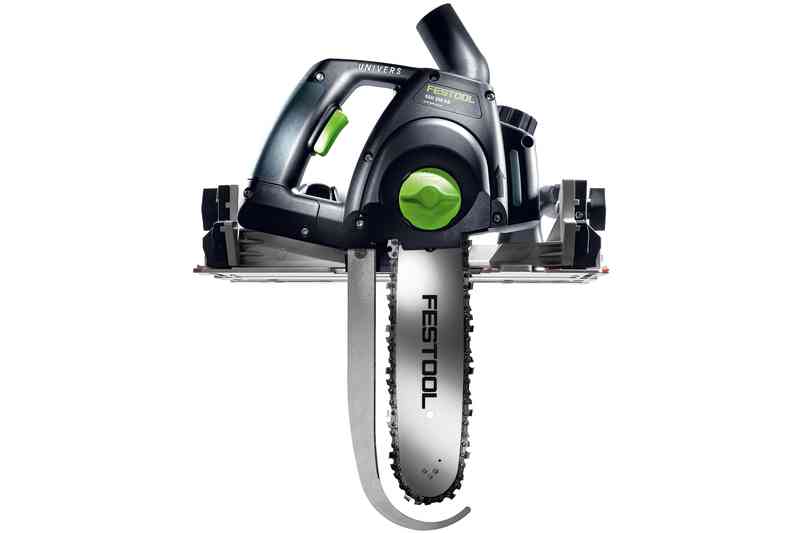

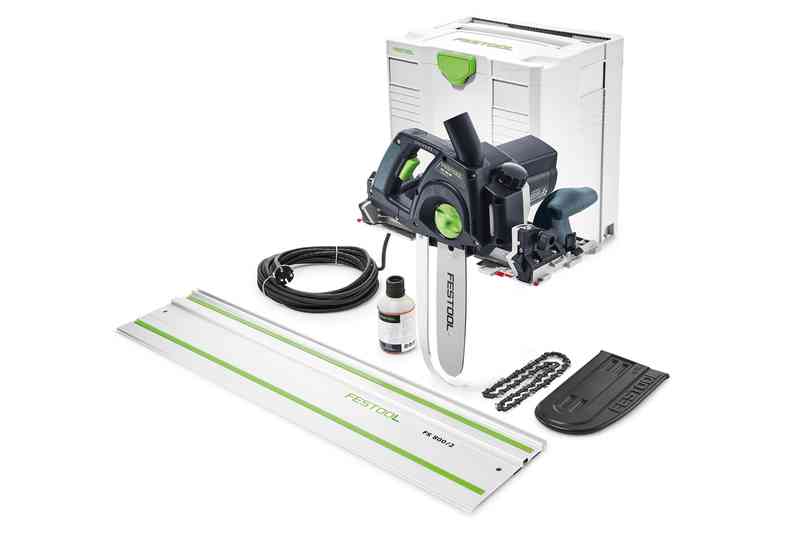

Sword saw UNIVERS SSU 200

Click to enlarge images

Product	Name	Product	Price	Buy	Favorites

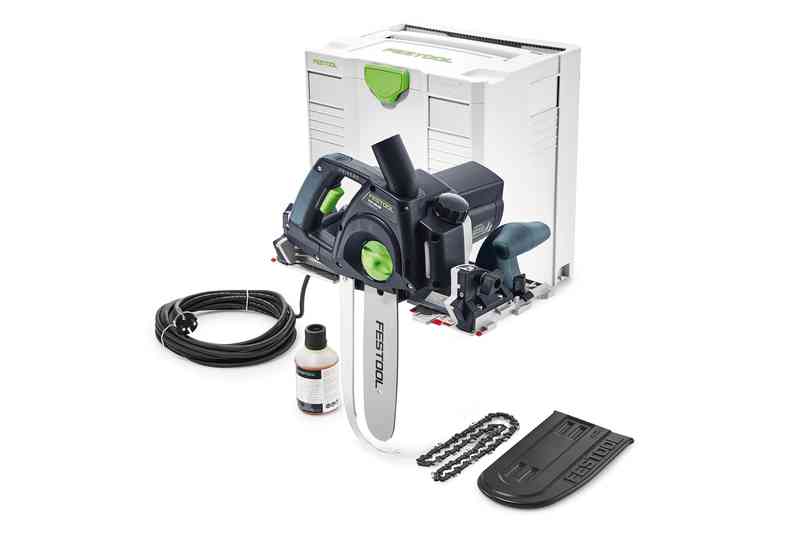

FT-576563	SSU 200 EB-Plus	FT-576563 SSU 200 EB-Plus	1 426,81 €
FT-576565	SSU 200 EB-Plus-FS	FT-576565 SSU 200 EB-Plus-FS	1 515,40 €

Descrizione:

Usage

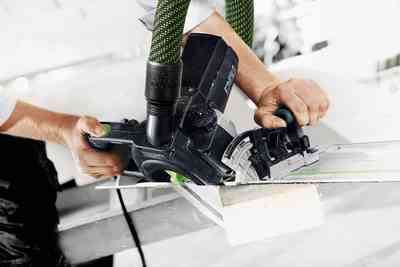

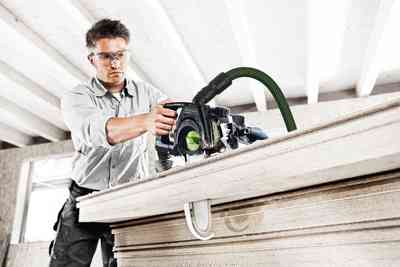

Cutting pressure-resistant insulating materials such as wooden fibreboards, PUR, polystyrene, etc.

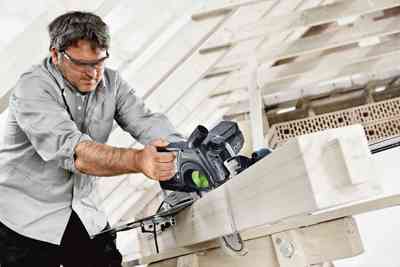

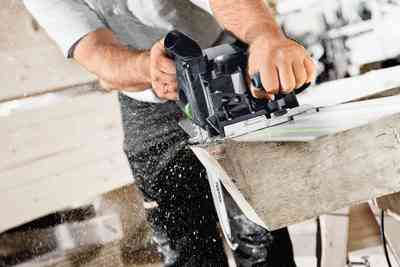

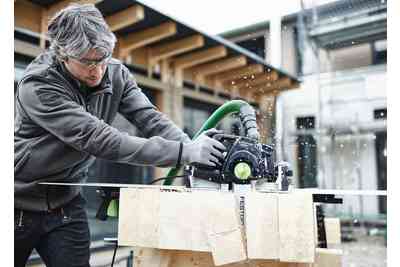

Chop, mitre, rip and jack-rafter cuts in wood.

Technical data

Power consumption

1 600 W

Idle engine speed

4 600 min⁻¹

Ctting depth 0°, 90°/45°/60°

200/140/100 mm

Mitre cuts

0 - 60 °

Cutting speed (idling)

10.60 m/s

Blade position

0 - 10 °

Weight

6.50 kg

Drive type

Mains

Performance features

MMC Multi Material Control electronics

“Multi Material Control” power electronics with constant adjustable speed and temperature monitor for work on all types of material.
Guide system

Patented guide system for safe guidance of saws and router bits.
Electronic overload protection

Protects the motor with blocking tool.
Electronic monitoring of the winding temperature

Electronic monitoring of the coil temperature protects against damage to the motor.
Starting current limiter

Simple start for household fuses.
Standard connection for dust extractors

Standard connection for dust extractors.
Electro-dynamic run-down brake

The chainsaw will stop immediately once the speed controller is released.

Noise and vibration values

Sawing: Total vibration average, Ah

3.40 m/s²

Sawing: Uncertainty (vibration) K

1.50 m/s²

Sawing: A-weighted sound power level, LWA

102.00 dB(A)

Sawing: Uncertainty (noise) K

3.00 dB

Sawing: A-weighted sound pressure level, LpA

91.00 dB(A)
