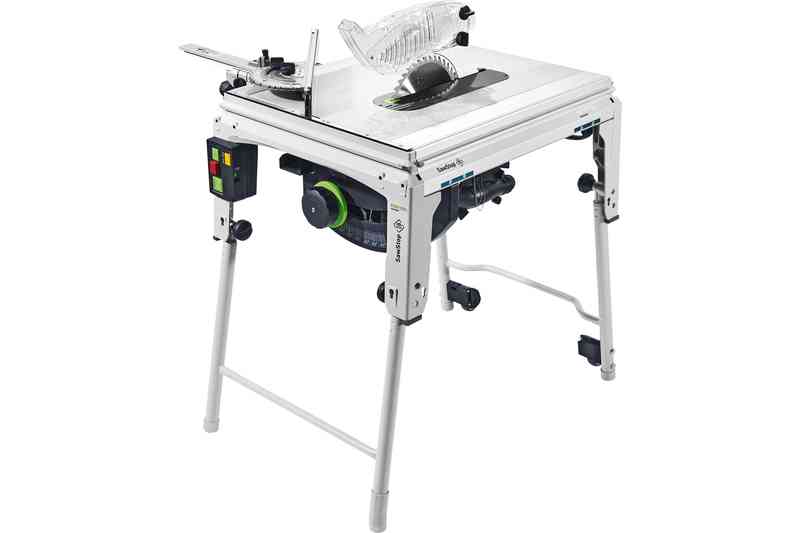

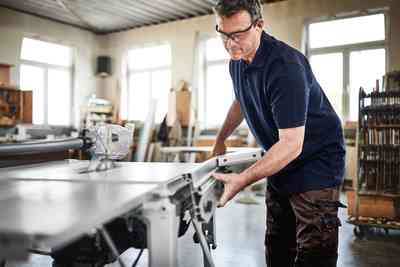

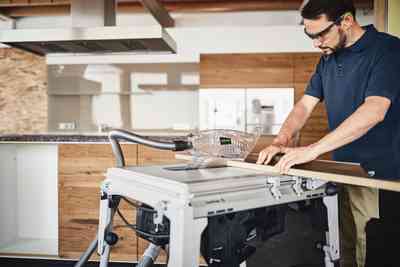

TKS 80 table saw

Click to enlarge images

Product	Name	Product	Price	Buy	Favorites
FT-575781	TKS 80 EBS	FT-575781 TKS 80 EBS	2 318,10 €

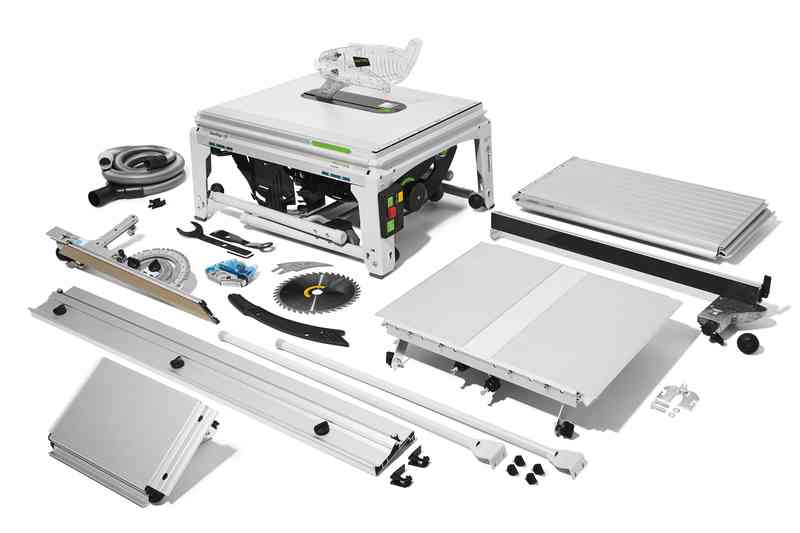

FT-575828	TKS 80 EBS-Set	FT-575828 TKS 80 EBS-Set	3 852,86 €

Descrizione:

Usage

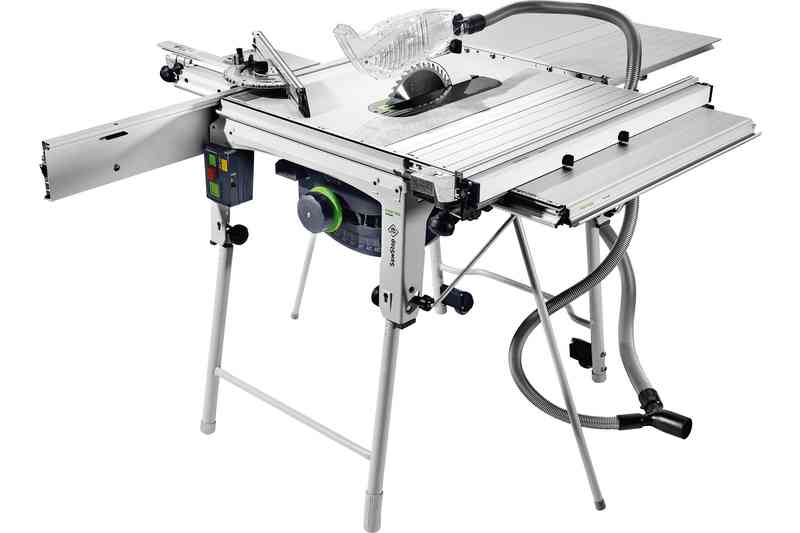

Cross-cutting up to a width of 820 mm with sliding table, at a cutting depth of 20 mm
Rip cutting up to a cutting height of 80 mm and a width of 600 mm with an extension table
Tilting saw blade for angled cuts between -2° and 47°

Technical data

Power consumption

2 200 W

Idle engine speed

1700 - 3500 min⁻¹

Saw blade diameter

254.00 mm

Cutting height 90°/45°

80/56 mm

Inclination

-2 / 47 °

Table dimensions

690 x 580 mm

Table height, legs folded away

385.00 mm

Table height, legs unfolded

900.00 mm

Dust extraction connection dia.

27/36 mm

Weight

37.00 kg

Drive type

Mains

Performance features

Splinter guard

Patented splinterguard for splinter-free cuts on both sides when sawing.

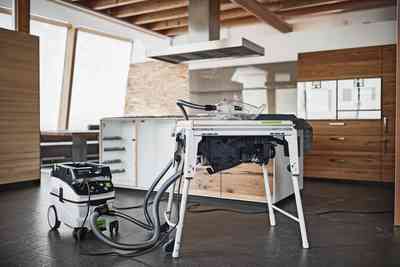

CLEANTEC

Integrated bayonet fitting as the connecting element between the extractor and the tool.
MMC Multi Material Control electronics

“Multi Material Control” power electronics with constant adjustable speed and temperature monitor for work on all types of material.
Quick-acting brake

For safe work when planing, sawing and routing.

Noise and vibration values

Sawing: A-weighted sound pressure level, LpA

87.00 dB(A)

Sawing: A-weighted sound power level, LWA

102.00 dB(A)

Sawing: Uncertainty (noise) K

3.00 dB
