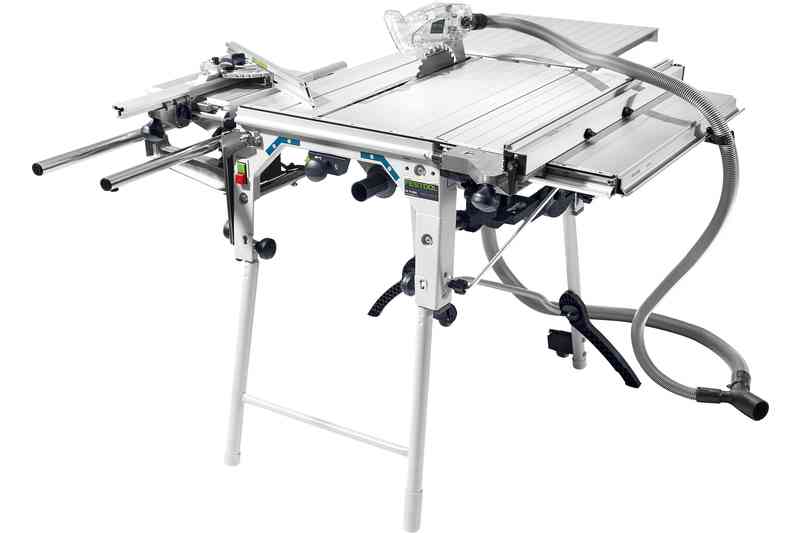

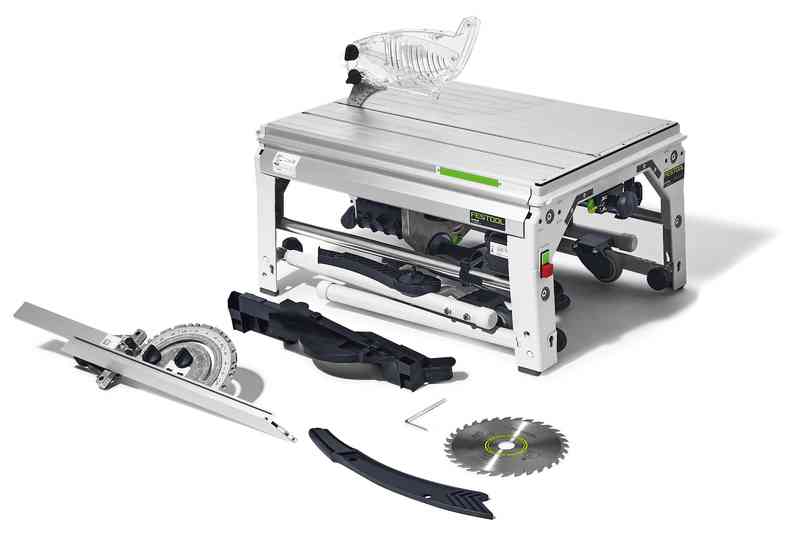

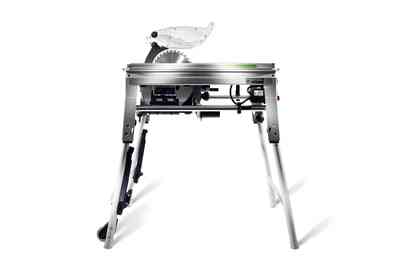

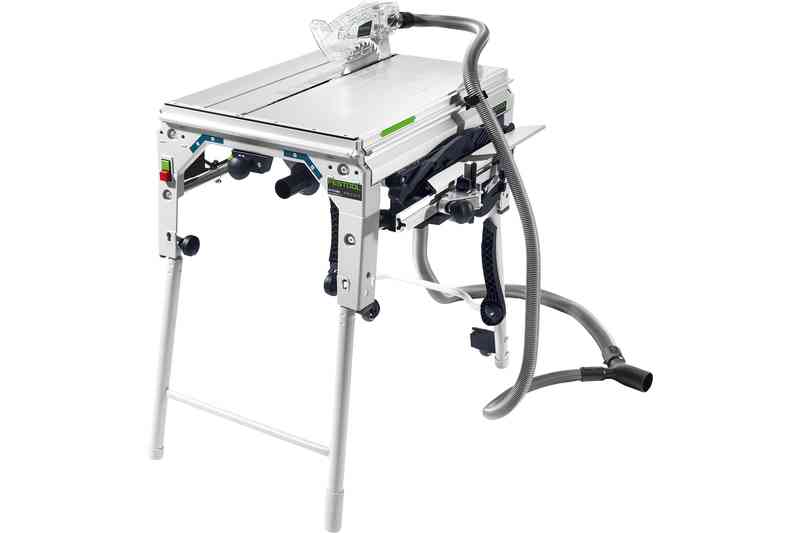

Trimming saw PRECISIO CS 70
Click to enlarge images
| Product | Name | Product | Price | Buy | Favorites |
|---|---|---|---|---|---|
 FT-574776 | CS 70 EBG | FT-574776 CS 70 EBG | 2 305,28 € | ||
 FT-574778 | CS 70 EG | FT-574778 CS 70 EG | 1 950,95 € | ||

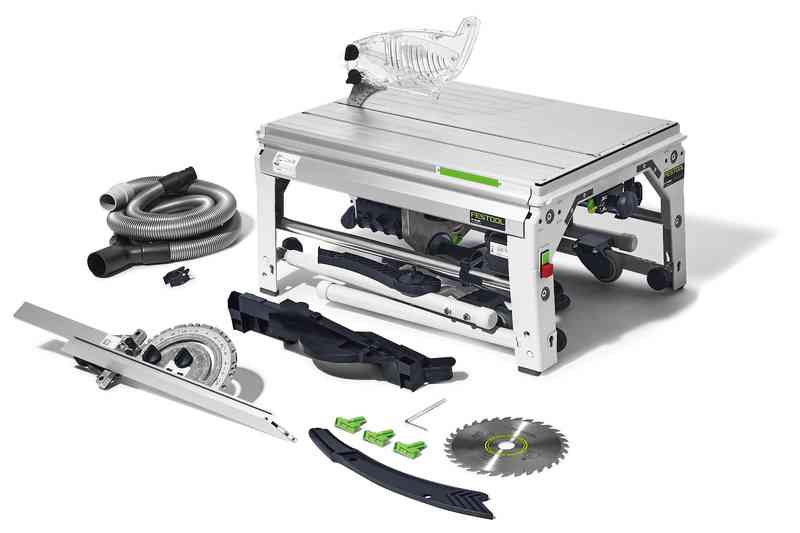

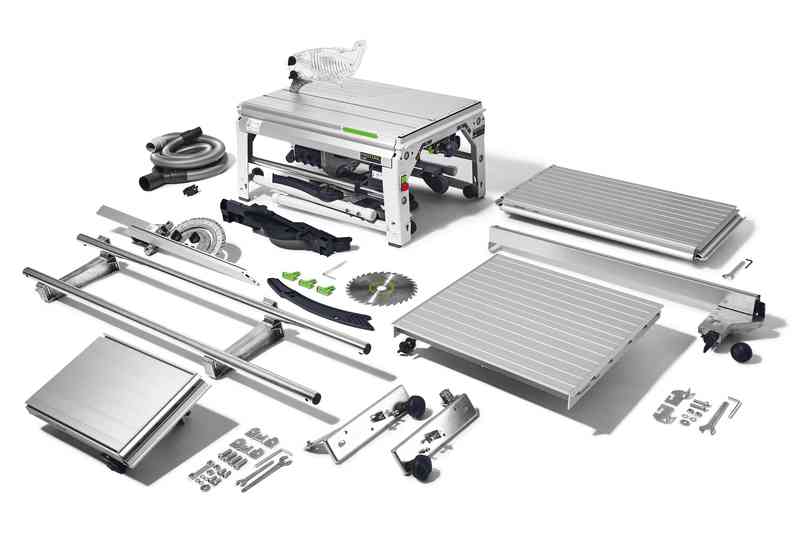

 FT-574782 | CS 70 EBG-Set | FT-574782 CS 70 EBG-Set | 4 096,34 € |
Descrizione:
Usage
Main applications

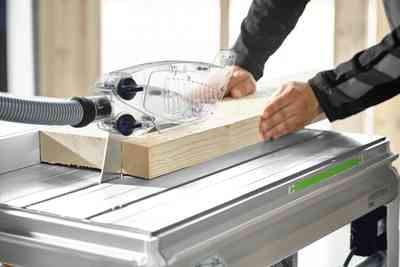

- Draw the saw blade for quick, precise cross cuts up to 320 mm wide
- Cross cuts up to 226 mm wide at 45°
- Rip cuts up to a depth of 70 mm
- Tilting saw blade for angled cuts between -2° and 47°
- Retractable spacer wedge for hidden cuts - removal not necessary
Technical Data
Technical data
Power consumption
2 100 W
Idle engine speed
2 000 - 4 200 min⁻¹
Saw blade diameter
225.00 mm
Cutting height 90°/45°
0 - 70/0 - 48 mm
Inclination
0 (-2)° - 45 (+47) °
Cutting path
320.00 mm
Table dimensions
690 x 500 mm
Table height, legs folded away
375.00 mm
Table height, legs unfolded
900.00 mm
Dust extraction connection dia.
27/36 mm
Weight
37.00 kg
Drive type
Mains
Performance features
-
MMC Multi Material Control electronics
“Multi Material Control” power electronics with constant adjustable speed and temperature monitor for work on all types of material.
-
Splinter guard

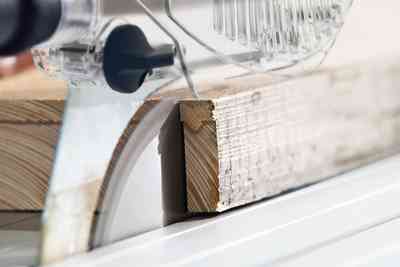

Patented splinterguard for splinter-free cuts on both sides when sawing.
-
FastFix
Makes changing routing, sawing, planing, sanding, drilling and screwdriving tools easier.
-
CLEANTEC
Standard connection (27/36/50 mm) for dust extraction, protects the operator and the environment.
-
Quick-acting brake
For safe work when planing, sawing and routing.
-
Groove in saw table
lever clamps on the saw table fix the workpiece securely and prevent it from shifting accidentally
Noise and vibration values
Idle state: A-weighted sound power level, LWA
91.00 dB(A)
Idle state: Uncertainty (vibration) K
1.50 m/s²
Idle state: A-weighted sound pressure level, LpA
78.00 dB(A)
Idle state: Total vibration average, Ah
2.50 m/s²
Idle state: Uncertainty (noise) K
3.00 dB
Sawing: Total vibration average, Ah
2.50 m/s²
Sawing: Uncertainty (noise) K
3.00 dB
Sawing: A-weighted sound power level, LWA
103.00 dB(A)
Sawing: A-weighted sound pressure level, LpA
90.00 dB(A)
Sawing: Uncertainty (vibration) K
1.50 m/s²
Accessories
 CS 70 ST | 1 126,17 € | |
 CS 70 VB | 482,81 € | |
 CS 70 VL | 343,62 € | |
 CS 70 LA | 338,77 € | |
 CS 70 KA | 417,19 € | |
 KA-AR | 43,38 € | |
 CS 70 TR | 122,45 € | Not Available |
 CS 70 ST 650 | 595,27 € | |
 225x2,6x30 W32 | 102,62 € | |
 225x2,6x30 PW18 | 102,62 € | |
 225x2,6x30 TF68 | 225,92 € | |
 225x2,6x30 W48 | 143,66 € | |
 225x2,6x30 TF64 | 225,92 € | |
210,00 € | ||
213,78 € | ||
 AB-AS CS/TKS | 128,00 € | |
 CS 70 SP /10 | 23,42 € | |
WA-AR | 43,38 € |
*All the prices include 22% Italian VAT
