ER32 collet chuck with HSK63F connection

Nome Serie:
183.300
Utensile cromato
Rotazione sinistra
Nuovo
Rotazione destra
The ideal partners for machining centers, point-to-point machines, CNC pantographs.

-Made with special high strength steel;
-Made with special high strength steel;
-precision marking on all coupled surfaces;

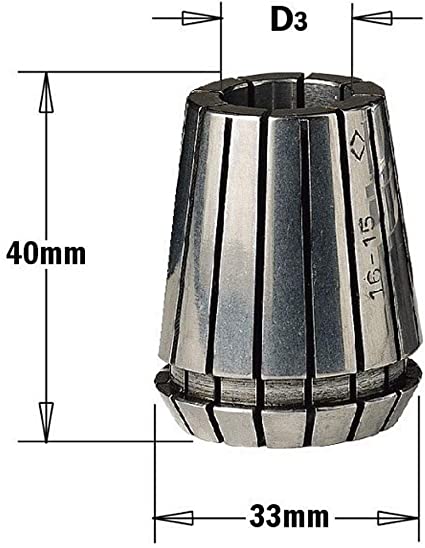

-interchangeable biconical collets with axial notches interspersed and opposed, for the integral cylindrical clamping of the tool;
-extensive clamping range below the nominal collet diameter -0.7mm;
-spindles specifically designed for right or left-hand rotation with self-locking antagonist threads;
-Tool clamping ring with semi-pitorical radial grooves (Woodruff) for sector wrench;

Application
For machines Homag, Eima, IMA from 9/94, Dubus, Weeke, Biesse, SMC, Morbidelli and Masterwood.
ProductProductPriceBuy
S
RH-LH
D3
Favorites
AEM8001001R
AEM8001001R
69,64 €
HSK63FRH
AEM8001002L
AEM8001002L
75,69 €
HSK63FLH
AEM8001005
AEM8001005
81,09 €
HSK63FRH-LH
184.030.00
184.030.00
24,85 €
3
184.040.00
184.040.00
24,85 €
4
184.050.00
184.050.00
24,85 €
5
184.060.00
184.060.00
24,85 €
6
184.065.00
184.065.00
24,85 €
6,35
184.070.00
184.070.00
24,85 €
7
184.080.00
184.080.00
24,85 €
8
184.090.00
184.090.00
24,85 €
9
184.095.00
184.095.00
24,85 €
9.5
184.100.00
184.100.00
24,85 €
10
184.110.00
184.110.00
24,85 €
11
184.120.00
184.120.00
24,85 €
12
184.127.00
184.127.00
24,85 €
12.7
184.130.00
184.130.00
24,85 €
13
184.140.00
184.140.00
24,85 €
14
184.150.00
184.150.00
24,85 €
15
184.160.00
184.160.00
24,85 €
16
184.170.00
184.170.00
24,85 €
17
184.180.00
184.180.00
24,85 €
18
184.190.00
184.190.00
24,85 €
19
184.200.00
184.200.00
24,85 €
20

Spare Parts
Chiave a settoreChiave a settore+
Ghiera di serraggio per mandriniGhiera di serraggio per mandrini+

*All the prices include 22% Italian VAT
