Quick connect drill bits for through holes

Nome Serie:

314 HW

Click to enlarge images

TECHNICAL FEATURES:

-manufactured with high strength special steel;

-black and orange fluorocarbon resin coating;

-HWM drill bit;

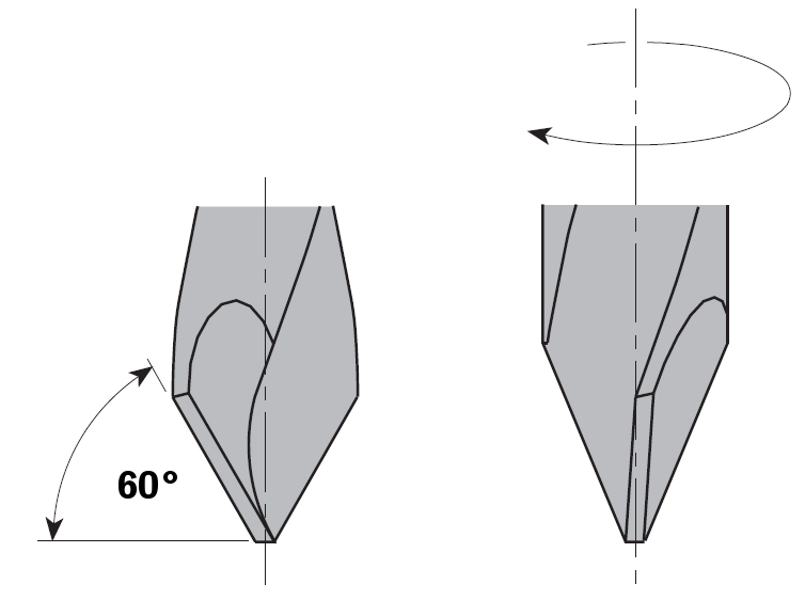

-2 cutting edges (Z2);

-2 helical grooves;

-attachment with fixing plate and screw for axial adjustment.

Application

For through holes in solid wood and wood derivatives, including laminates. To be inserted on spindles or adapters in drilling machines.

For panels with a maximum thickness of 25-30mm.

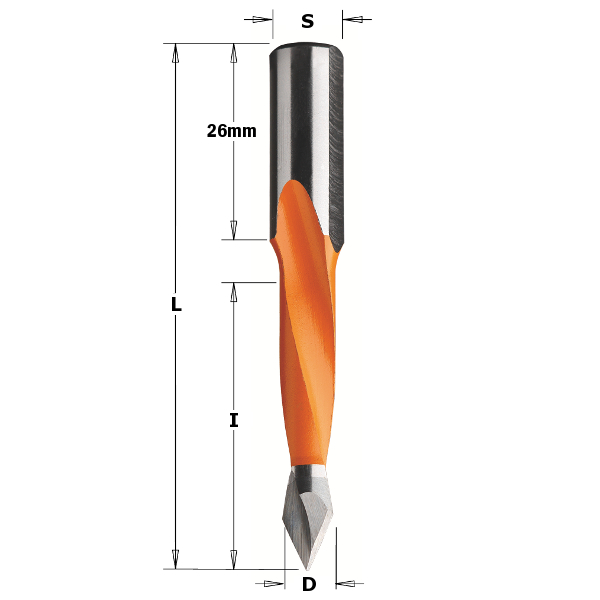

Product	Product	Price	D	I	L	S	RH-LH
314.040.12	314.040.12	24,78 €	4	30	70	10	LH
314.040.11	314.040.11	24,78 €	4	30	70	10	RH
314.047.12	314.047.12	24,93 €	4,76	35	70	10	LH
314.047.11	314.047.11	24,93 €	4,76	35	70	10	RH
314.050.12	314.050.12	21,05 €	5	35	70	10	LH
314.050.11	314.050.11	21,05 €	5	35	70	10	RH
314.055.12	314.055.12	24,93 €	5,55	35	70	10	LH
314.055.11	314.055.11	24,93 €	5,55	35	70	10	RH
314.060.12	314.060.12	22,40 €	6	35	70	10	LH
314.060.11	314.060.11	22,40 €	6	35	70	10	RH
314.064.12	314.064.12	24,93 €	6,35	35	70	10	LH
314.064.11	314.064.11	24,93 €	6,35	35	70	10	RH
314.070.12	314.070.12	24,18 €	7	35	70	10	LH
314.070.11	314.070.11	24,18 €	7	35	70	10	RH
314.080.12	314.080.12	23,00 €	8	35	70	10	LH
314.080.11	314.080.11	23,00 €	8	35	70	10	RH
314.090.12	314.090.12	25,28 €	9	35	70	10	LH
314.090.11	314.090.11	25,28 €	9	35	70	10	RH
314.095.12	314.095.12	28,99 €	9,52	35	70	10	LH
314.095.11	314.095.11	28,99 €	9,52	35	70	10	RH
314.100.12	314.100.12	24,78 €	10	35	70	10	LH
314.100.11	314.100.11	24,78 €	10	35	70	10	RH
314.120.12	314.120.12	28,56 €	12	35	70	10	LH
314.120.11	314.120.11	28,56 €	12	35	70	10	RH
314.127.12	314.127.12	51,64 €	12,7	35	70	10	LH
314.127.11	314.127.11	51,64 €	12,7	35	70	10	RH

Spare Parts

Vite STIC+

Adattatore opzionale per macchine Weeke+

*All the prices include 22% Italian VAT
